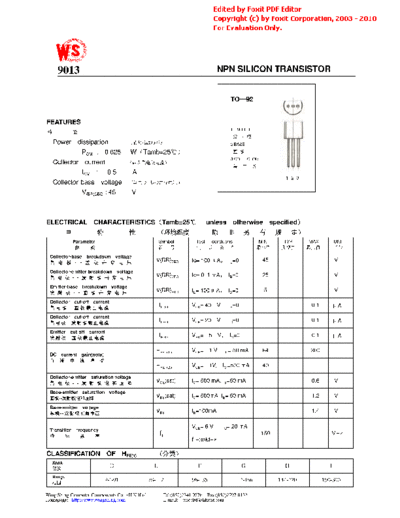

Image preview - the first page of the document



>> Download 9013 documenatation <<

Text preview - extract from the document

     9013                                                                          NPN SILICON TRANSISTOR


                                                                                          TO        92


FEATURES
                                                                                          1.EMITTER


   Power dissipation                                                                      2.BASE

                PCM : 0.625           W     Tamb=25
                                                                                          3.COLLECTOR
   Collector current

                ICM :       0.5         A
                                                                                                                  1 2 3
   Collector-base voltage               --

                V(BR)CBO : 45           V



ELECTRICAL CHARACTERISTICS                              Tamb=25            unless otherwise specified

             Parameter                                 Symbol         Test conditions                    MIN    TYP       MAX           UNIT

 Collector-base breakdown voltage
    - -
                                                    V(BR)CBO        Ic= 100      A       IE=0             45                            V

 Collector-emitter breakdown voltage
    - -
                                                    V(BR)CEO        Ic= 0. 1 mA          IB=0             25                            V

 Emitter-base breakdown voltage
    - -
                                                    V(BR)EBO        IE= 100      A       IC=0             5                             V

 Collector cut-off current
 --
                                                       ICBO         VCB= 40      V       IE=0                              0.1           A

 Collector cut-off current
 --
                                                       ICEO         VCE= 20      V       IB=0                              0.1           A

 Emitter cut-off current
 --
                                                       IEBO         VEB=     5     V     IC=0                              0.1           A

                                                    HFE       1     VCE=     1 V,      IC= 50 mA          64              300
 DC current gain(note)

                                                    HFE       2     VCE=     1V,       IC =500 mA         40

 Collector-emitter saturation voltage
    - -
                                                    VCE(sat)        IC= 500 mA, IB=50 mA                                   0.6          V

 Base-emitter saturation voltage
 --

                                                    VBE(sat)        IC= 500mA, IB= 50 mA                                   1.2          V

 Base-emitter voltage
   - -
                                                    VBE             IE=100mA                                               1.4          V

                                                                    VCE= 6 V,          IC= 20 mA
 Transition frequency
                                                       fT                                                150                        MHz
                                                                    f =30MHz

CLASSIFICATION OF HFE(1)
  Rank

                             D                     E                   F                        G                 H                 I
  Range

                            64-91                78-112             96-135                 112-166             144-220           190-300

Wing Shing Computer Components Co., (H.K.)Ltd.          Tel:(852)2341 9276 Fax:(852)2797 8153
Homepage: http://www.wingshing.com                      E-mail: [email protected]
