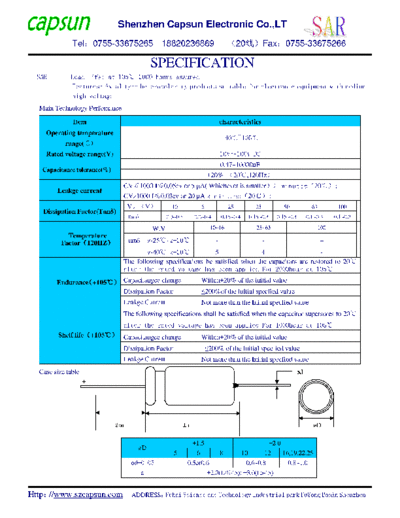

Image preview - the first page of the document



>> Download 20091151924571481 documenatation <<

Text preview - extract from the document

                              Shenzhen Capsun Electronic Co.,LT
              Tel0755-33675265                    18820236869                           20Fax0755-33675266

                                               SPECIFICATION
  SAR        Load life: at 105 2000 hours assured
             Features: Axial type heteropolarity products suitable for electronic equipment with medium
             high voltage
  Main Technology Perfomance

              Item                                                                  characteristics
    Operating temperature
                                                                                    -40~105
           range()
    Rated voltage range(V)                                                          10V100V.DC
                                                                                    0.47~10000uF
   Capacitance tolerance(%)
