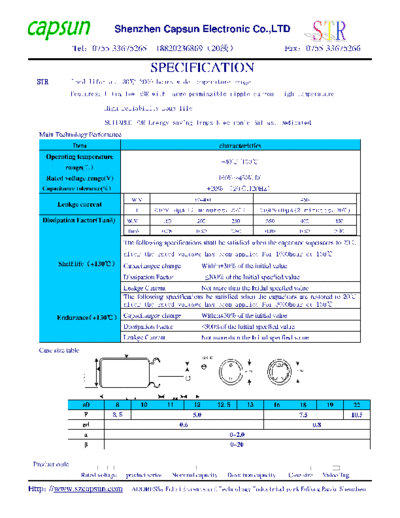

Image preview - the first page of the document



>> Download 20091151926533932 documenatation <<

Text preview - extract from the document

                                Shenzhen Capsun Electronic Co.,LTD
                Tel0755-33675265                    1882023686920                                                       Fax0755-33675266

                                                    SPECIFICATION
  STR           Load life: at 130 2000 hours wide temperature range
                FeaturesUltra low ESR with large permissible ripple current High temperature

                            High reliability Long life

                            SUITABLE FOR Energy saving lamps Electronic Ballast Dedicated
  Main Technology Perfomance
                Item                                                                     characteristics
     Operating temperature
                                                                                          -40~130
           range()
     Rated voltage range(V)                                                              160V450V.DC
   Capacitance tolerance(%)
