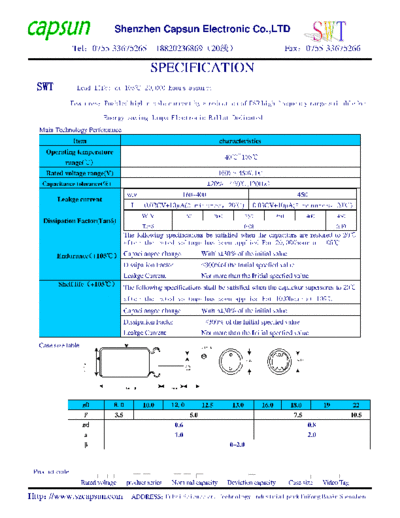

Image preview - the first page of the document



>> Download 20091151927446348 documenatation <<

Text preview - extract from the document

                                Shenzhen Capsun Electronic Co.,LTD
                Tel0755-33675265                         1882023686920                                                  Fax0755-33675266

                                                    SPECIFICATION
  SWT             Load life: at 105 20,000 hours assured

                FeaturesEnabled high ripple current by a reduction of ESR high frequency range suitablefor

                            Energy saving lamps Electronic Ballst Dedicated
  Main Technology Perfomance
                Item                                                                  characteristics
     Operating temperature
                                                                                       -40~105
           range()
     Rated voltage range(V)                                                           160V450V.DC
   Capacitance tolerance(%)
