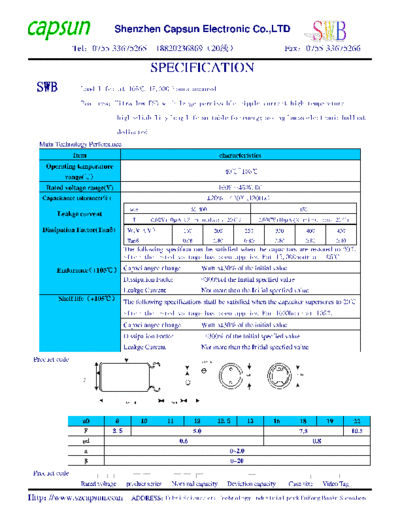

Image preview - the first page of the document



>> Download 20091151928258527 documenatation <<

Text preview - extract from the document

                              Shenzhen Capsun Electronic Co.,LTD
                Tel0755-33675265                    1882023686920                                                        Fax0755-33675266

                                                    SPECIFICATION
  SWB             Load life: at 105 15,000 hours assured

                  FeaturesUitra low ESR with large permissible ripple current high temperature

                                  highreliability long life suitable for energy saving lamps electronic ballast

                                  dedicated
  Main Technology Perfomance
                Item                                                                     characteristics
     Operating temperature
                                                                                          -40~105
           range()
     Rated voltage range(V)                                                             160V450V.DC
   Capacitance tolerance(%)
