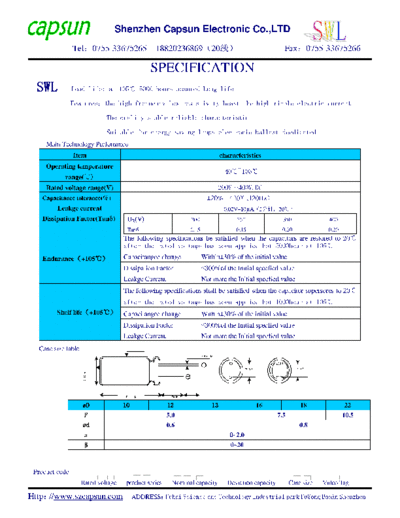

Image preview - the first page of the document



>> Download 20091151929596590 documenatation <<

Text preview - extract from the document

                                Shenzhen Capsun Electronic Co.,LTD
                Tel0755-33675265                1882023686920                                            Fax0755-33675266

                                              SPECIFICATION
  SWL           Load life: at 105 5000 hours assured Long life

                Featuresthe high frequency low resistivity beast the high ripple electric current

                             The quality stable reliable characteristic

                             Suitable for energy saving lamps electronic ballast decdicated
     Main Technology Perfomance
                Item                                                           characteristics
     Operating temperature
                                                                               -40~105
           range()
     Rated voltage range(V)                                                   200V400V.DC
   Capacitance tolerance(%)
