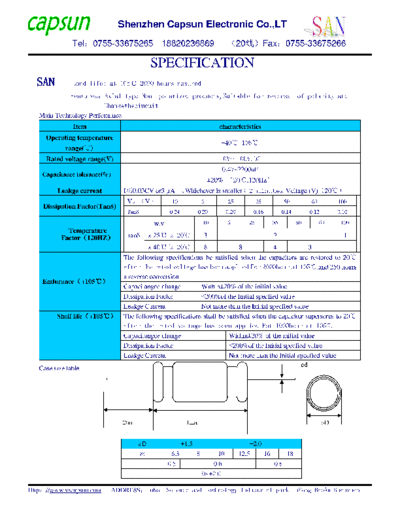

Image preview - the first page of the document
20091151923554975


>> Download 20091151923554975 documenatation <<

Text preview - extract from the document
                               Shenzhen Capsun Electronic Co.,LT
               Tel0755-33675265                18820236869                       20Fax0755-33675266

                                            SPECIFICATION
  SAN          Load life: at 105 2000 hours assured
             FeaturesAxial type Non- polarized products,Suitable for reversal of polarity and
                        Changetheciucuit
   Main Technology Perfomance
               Item                                                         characteristics
     Operating temperature
                                                                              -40~105
            range()
     Rated voltage range(V)                                                 10V100V.DC
                                                                                0.47~2200uF
    Capacitance tolerance(%)
