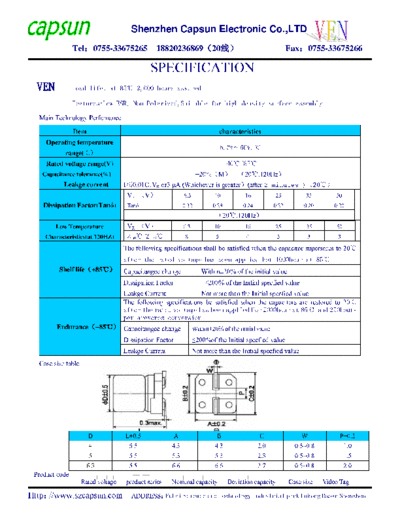

Image preview - the first page of the document



>> Download 2009115193735572 documenatation <<

Text preview - extract from the document

                                      Shenzhen Capsun Electronic Co.,LTD
                Tel0755-33675265               1882023686920                                                Fax0755-33675266

                                             SPECIFICATION
  VEN           Load life: at 85 2,000 hours assured

                Features:low ESR, Non-Polarized,Suitable for high-density surface assembly

  Main Technology Perfomance:

                Item                                                            characteristics
     Operating temperature
                                                                                6.3V50V.DC
           range()
     Rated voltage range(V)                                                       -40~85
   Capacitance tolerance(%)
