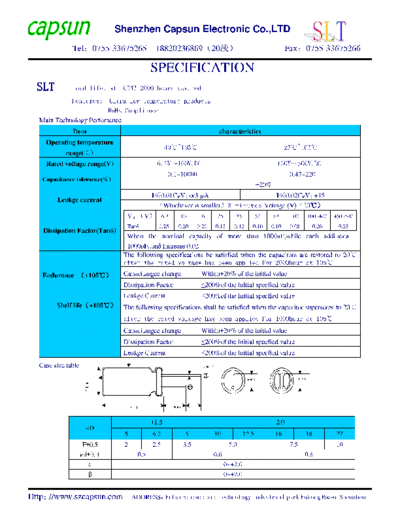

Image preview - the first page of the document
2009115193194066


>> Download 2009115193194066 documenatation <<

Text preview - extract from the document
                                 Shenzhen Capsun Electronic Co.,LTD
              Tel0755-33675265                    1882023686920                                                          Fax0755-33675266

                                                 SPECIFICATION
  SLT         Load life: at 105 2000 hours assured
            Features: Ultra-low temperature products
                        RoHs Compliance
  Main Technology Perfomance
              Item                                                                  characteristics
    Operating temperature
                                                    -40~105                                                            -25~105
           range()
    Rated voltage range(V)                         6.3V100V.DC                                                     160V500V.DC
                                                        0.1~10000                                                         0.47~220
   Capacitance tolerance(%)
