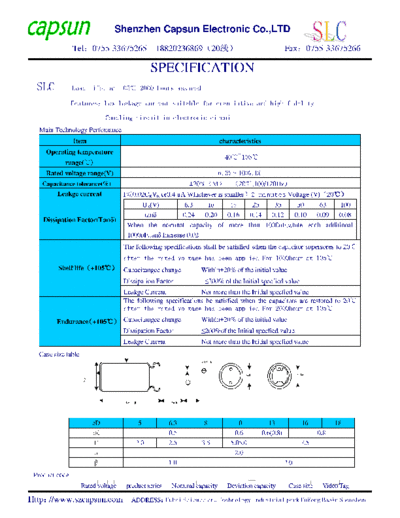

Image preview - the first page of the document



>> Download 200911519321631 documenatation <<

Text preview - extract from the document

                                   Shenzhen Capsun Electronic Co.,LTD
                Tel0755-33675265                   1882023686920                                           Fax0755-33675266

                                                   SPECIFICATION
  SLC           Load life: at 105 2000 hours assured

                FeaturesLow leakage current suitable for quantiative and high fidelity

                                 Coupling circuit in electronic circuit
  Main Technology Perfomance
                Item                                                         characteristics
     Operating temperature
                                                                             -40~105
           range()
     Rated voltage range(V)                                                  6.3V100V.DC
   Capacitance tolerance(%)
