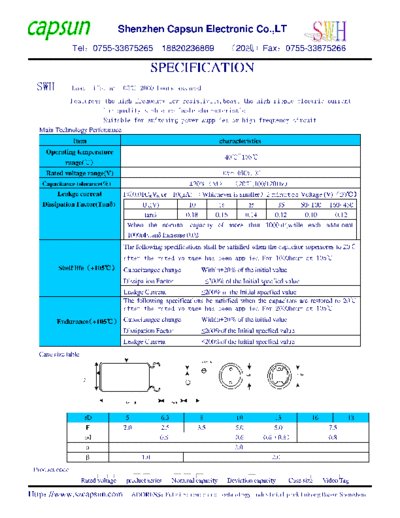

Image preview - the first page of the document



>> Download 20091151932496834 documenatation <<

Text preview - extract from the document

                                    Shenzhen Capsun Electronic Co.,LT
                Tel0755-33675265                     18820236869                 20Fax0755-33675266

                                                    SPECIFICATION
  SWH           Load life: at 105 2000 hours assured
            Featuresthe high frequency low resistivity,beast the high ripple electric current
                       The quality stable reliable characteristic
                       Suitable for suitching power supplies or high frequency circuit
  Main Technology Perfomance
                Item                                                           characteristics
     Operating temperature
                                                                               -40~105
           range()
     Rated voltage range(V)                                                    10V450V.DC
   Capacitance tolerance(%)
