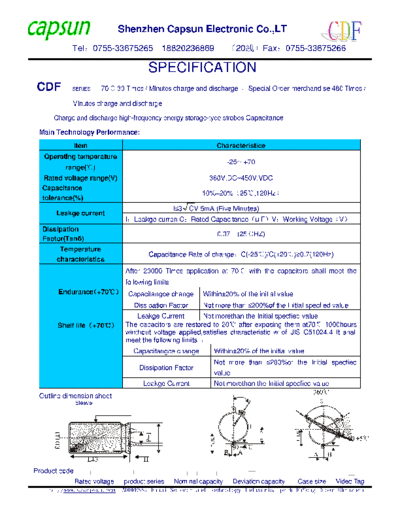

Image preview - the first page of the document



>> Download 2009115194174244 documenatation <<

Text preview - extract from the document

                                 Shenzhen Capsun Electronic Co.,LT
               Tel0755-33675265                 18820236869                20Fax0755-33675266

                                             SPECIFICATION
CDF            SERIES       70 30 Times / Minutes charge and discharge Special Order merchandise 480 Times /

               Minutes charge and discharge

      Charge and discharge high-frequency energy storage-type strobes Capacitance

 Main Technology Performance:
               Item                                                     Characteristice
   Operating temperature
                                                                           -25+70
              range()
   Rated voltage range(V)                                        360V.DC~450V.VDC
  Capacitance
                                                              -10%+20%25,120Hz
  tolerance(%)
                                                      I3   CV 5mA (Five Minutes)
       Leakge current
                                   ILeakge curren CRated Capacitanceu FVWorking VoltageV
  Dissipation
                                                                        0.07   (25HZ)
  Factor(Tan)
         Temperature
                                             Capacitance Rate of changeC(-25)/C(+20)0.7(120Hz)
        characteristics
                                   After 20000 Times application at 70 with the capacitors shall meet the
                                   following limits
                 +70 Capacitangce change
         Endurance                                             Within
