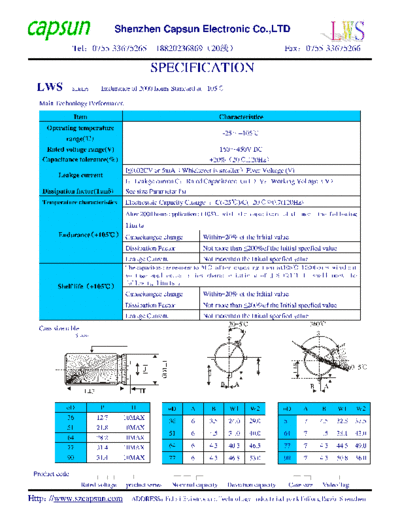

Image preview - the first page of the document
20091152024144154


>> Download 20091152024144154 documenatation <<

Text preview - extract from the document
                                  Shenzhen Capsun Electronic Co.,LTD
                Tel0755-33675265                1882023686920                                            Fax0755-33675266

                                                SPECIFICATION
  LWS           SERIES      Endurance of 2000 hours Standard at +105

  Main Technology Performance
                Item                                                            Characteristice
     Operating temperature
                                                                                 -25+105
            range()
     Rated voltage range(V)                                                     160450V.DC
   Capacitance tolerance(%)
