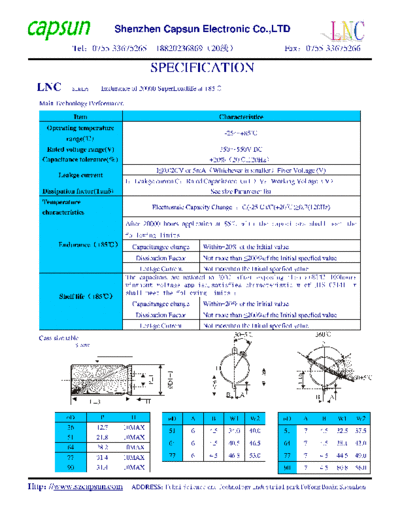

Image preview - the first page of the document



>> Download 20091152030478116 documenatation <<

Text preview - extract from the document

                                 Shenzhen Capsun Electronic Co.,LTD
              Tel0755-33675265                    1882023686920                                        Fax0755-33675266

                                             SPECIFICATION
  LNC         SERIES         Endurance of 20000 SuperLoadlife at +85

  Main Technology Performance
               Item                                                        Characteristice
    Operating temperature
                                                                            -25+85
            range()
    Rated voltage range(V)                                                 350550V.DC
   Capacitance tolerance(%)
