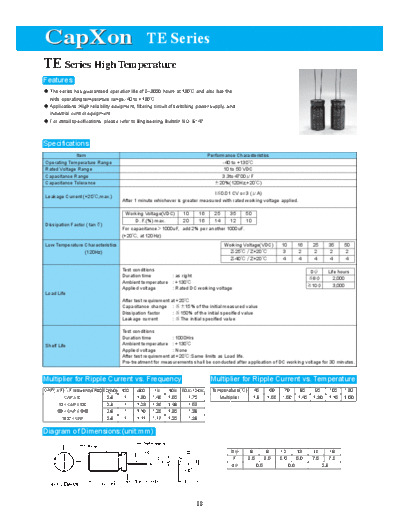

Image preview - the first page of the document
>> Download te documenatation <<
Text preview - extract from the document
CapXon TE Series
TE Series High Temperature
Features
The series has guaranteed operation life of 2~3000 hours at 130 and also has the
wide operating temperature range,-40 to +130
Applications :High reliability equipment, filtering circuit of switching power supply, and
industrial control equipment.
For detail specifications, please refer to Engineering Bulletin NO. E147
Specifications
Item Performance Characteristics
Operating Temperature Range -40 to +130
Rated Voltage Range 10 to 50 VDC
Capacitance Range 3.3to 4700 F
Capacitance Tolerance 20%(120Hz,+20 )
I 0.01 CV or 3 ( A)
Leakage Current (+20 ,max.)
After 1 minute whichever is greater measured with rated working voltage applied.
Working Voltage(VDC) 10 16 25 35 50
D. F.(%) max. 20 16 14 12 10
Dissipation Factor ( tan )
For capacitance 1000uF, add 2% per another 1000uF.
(+20 , at 120Hz)
Low Temperature Characteristics Working Voltage(VDC) 10 16 25 35 50
(120Hz) Z-25 Z+20 3 2 2 2 2
Z-40 Z+20 4 4 4 4 4
Test conditions D Life hours
Duration time : as right
8 2,000
Ambient temperature : +130
10 3,000
Applied voltage : Rated DC working voltage
Load Life
After test requirement at +20
Capacitance change : 15% of the initial measured value
Dissipation factor : 150% of the initial specified value
Leakage current : The initial specified value
Test conditions
Duration time : 1000Hrs
Shelf Life Ambient temperature : +130
Applied voltage : None
After test requirement at +20 :Same limits as Load life.
Pre-treatment for measurements shall be conducted after application of DC working voltage for 30 minutes.
Multiplier for Ripple Current vs. Frequency Multiplier for Ripple Current vs. Temperature
CAP( F) Frequency(Hz) 50(60) 120 400 1K 10K 50K-100K Temperature( ) 45 60 70 85 95 105 130
CAP 10 0.8 1 1.30 1.45 1.65 1.70 Multiplier 1.8 1.55 1.50 1.45 1.30 1.15 1.00
10 CAP 100 0.8 1 1.23 1.36 1.48 1.53
100 CAP 1000 0.8 1 1.16 1.25 1.35 1.38
1000 CAP 0.8 1 1.11 1.17 1.25 1.28
Diagram of Dimensions:(unit:mm)
D 8 8 10 13 16 18
F 3.5 3.5 5.0 5.0 7.5 7.5
d 0.5 0.6 0.8
CapXon TE Series
Case Size
DxL(mm)
WV (SV) 10 16 25 35 50
(13) (20) (32) (44) (63)
