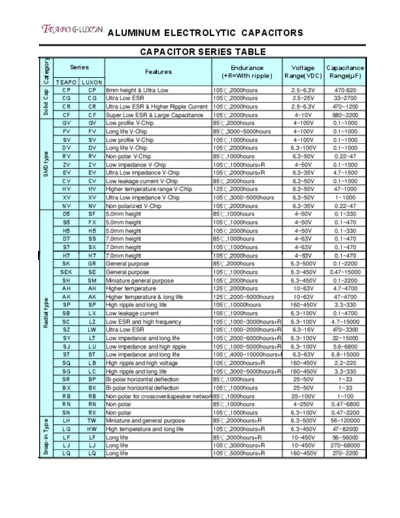

Image preview - the first page of the document
>> Download Comparison documenatation <<
Text preview - extract from the document
ALUMINUM ELECTROLYTIC CAPACITORS
CAPACITOR SERIES TABLE
Solid Cap Category
Series Endurance Voltage Capacitance
Features
(+R=With ripple) Range(VDC) Range(F)
TEAPO LUXON
CP CP 8mm height & Ultra Low 105,2000hours 2.5~6.3V 470-820
CG CG Ultra Low ESR 105,2000hours 2.5~25V 33~2700
CR CR Ultra Low ESR & Higher Ripple Current 105,2000hours 2.5~6.3V 470~1200
CF CF Super Low ESR & Large Capacitance 105,2000hours 4~10V 680~2200
GV GV Low profile V-Chip 85,2000hours 4~100V 0.1~1000
FV FV Long life V-Chip 85,3000~5000hours 4~100V 0.1~1000
SV SV Low profile V-Chip 105,1000hours 4~100V 0.1~1000
DV DV Long life V-Chip 105,2000hours 6.3~100V 0.1~1000
SMD type
RV RV Non-polar V-Chip 85,1000hours 6.3~50V 0.22~47
ZV ZV Low impedance V-Chip 105,1000hours+R 4~50V 0.1~1000
EV EV Ultra Low impedance V-Chip 105,2000hours+R 6.3~35V 4.7~1500
CV CV Low leakage current V-Chip 85,2000hours 6.3~50V 0.1~1000
HV HV Higher temperature range V-Chip 125,2000hours 6.3~50V 47~1000
XV XV Ultra Low impedance V-Chip 105,3000~5000hours 6.3~50V 1~1000
NV NV Non-polarized V-Chip 105,2000hours 6.3~35V 0.22~47
D5 SF 5.0mm height 85,1000hours 4~50V 0.1~330
S5 FX 5.0mm height 105,1000hours 4~50V 0.1~470
H5 H5 5.0mm height 105,2000hours 4~50V 0.1~330
D7 SS 7.0mm height 85,1000hours 4~63V 0.1~470
S7 SX 7.0mm height 105,1000hours 4~63V 0.1~470
H7 H7 7.0mm
7 0mm height 105,2000hours
105 2000hours 4~63V 0 1~470
0.1~470
SK GR General purpose 85,2000hours 6.3~500V 0.1~2200
SEK SE General purpose 105,1000hours 6.3~450V 0.47~15000
SH SM Miniature general purpose 105,2000hours 6.3~450V 0.1~2200
AH AH Higher temperature 125,2000hours 10~63V 4.7~4700
AK AK Higher temperature & long life 125,2000~5000hours 10~63V 47~4700
Radial type
SP SP High ripple and long life 105,10000hours 160~450V 3.3~330
SB LX Low leakage current 105,1000hours 6.3~100V 0.1~4700
SC LZ Low ESR and high frequency 105,1000~3000hours+R 6.3~100V 4.7~15000
SZ LW Ultra Low ESR 105,1000~2000hours+R 6.3~16V 470~3300
SY LT Low impedance and long life 105,2000~6000hours+R 6.3~100V 22~15000
SJ LU Low impedance and high ripple 105,1000~5000hours+R 6.3~100V 5.6~6800
ST ST Low impedance and long life 105,4000~10000hours+R 6.3~63V 6.8~15000
SQ LB High ripple and high voltage 105,2000hours+R 160~450V 2.2~220
SG LC High ripple and long life 105,3000~5000hours+R 160~450V 3.3~330
SR BP Bi-polar horizontal deflection 85,1000hours 25~50V 1~33
BX BX Bi-polar horizontal deflection 105,1000hours 25~50V 1~33
RB RB Non-polar for crossover&speaker network85,1000hours 25~100V 1~100
RN RN Non-polar 85,1000hours 4~250V 0.47~6800
SN RX Non-polar 105,1000hours 6.3~100V 0.47~2200
LH TW Miniature and general purpose 85,2000hours+R 6.3~500V 56~120000
Snap-in Type
LG HW High temperature and long life 105,2000hours+R 6.3~450V 47~82000
LF LF Long life 85,3000hours+R 10~450V 56~56000
LJ LJ Long life 105,3000hours+R 10~450V 270~68000
LQ LQ Long life 105,5000hours+R 160~450V 270~2200
