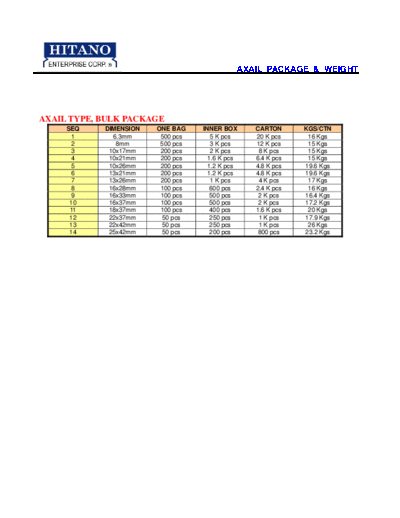

Image preview - the first page of the document
>> Download AXIAL Package (E_Axial_Package_080514) documenatation <<
Text preview - extract from the document
AXAIL PACKAGE & WEIGHT
AXAIL TYPE, BULK PACKAGE
SEQ DIMENSION ONE BAG INNER BOX CARTON KGS/CTN
1 6.3mm 500 pcs 5 K pcs 20 K pcs 16 Kgs
2 8mm 500 pcs 3 K pcs 12 K pcs 15 Kgs
3 10x17mm 200 pcs 2 K pcs 8 K pcs 15 Kgs
4 10x21mm 200 pcs 1.6 K pcs 6.4 K pcs 15 Kgs
5 10x26mm 200 pcs 1.2 K pcs 4.8 K pcs 19.6 Kgs
6 13x21mm 200 pcs 1.2 K pcs 4.8 K pcs 19.6 Kgs
7 13x26mm 200 pcs 1 K pcs 4 K pcs 17 Kgs
8 16x28mm 100 pcs 600 pcs 2.4 K pcs 16 Kgs
9 16x33mm 100 pcs 500 pcs 2 K pcs 16.4 Kgs
10 16x37mm 100 pcs 500 pcs 2 K pcs 17.2 Kgs
11 18x37mm 100 pcs 400 pcs 1.6 K pcs 20 Kgs
12 22x37mm 50 pcs 250 pcs 1 K pcs 17.9 Kgs
13 22x42mm 50 pcs 250 pcs 1 K pcs 26 Kgs
14 25x42mm 50 pcs 200 pcs 800 pcs 23.2 Kgs
