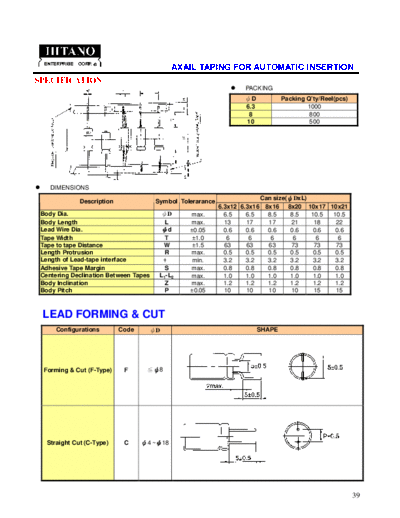

Image preview - the first page of the document
AXIAL TAPING, Cut Lead & Lead Forming and Cut spec (E-AxialTap)


>> Download AXIAL TAPING, Cut Lead & Lead Forming and Cut spec (E-AxialTap) documenatation <<

Text preview - extract from the document
                                               AXAIL TAPING FOR AUTOMATIC INSERTION
SPECIFICATION
                                                                  !    PACKING
                                                                       D             Packing Q'ty/Reel(pcs)
                                                                       6.3                   1000
                                                                        8                     800
                                                                       10                     500




!      DIMENSIONS

                 Description              Symbol Tolerarance
                                                                               Can size(DxL)
                                                               6.3x12 6.3x16    8x16 8x20 10x17 10x21
    Body Dia.                              D        max.         6.5    6.5      8.5    8.5  10.5 10.5
    Body Length                              L      max.         13     17       17     21    18   22
    Lead Wire Dia.                          d
