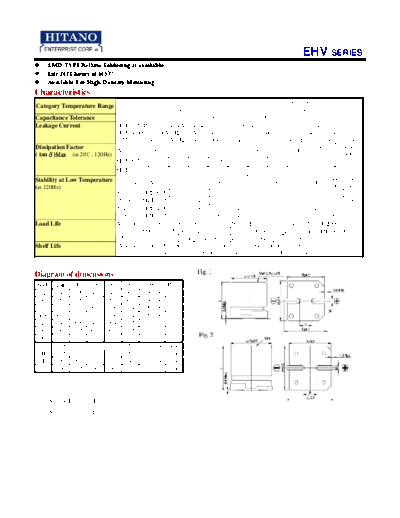

Image preview - the first page of the document
>> Download EHV (EHV_110524) documenatation <<
Text preview - extract from the document
EHV SERIES
SMD TYPE Reflow Soldering is available
Life 2000 hours at 105
Available For High Density Mounting
Characteristics
6.3 ~ 100V 160 ~ 450V
Category Temperature Range
-55 ~ +105 -40 ~ +105
Capacitance Tolerance +20% -20% (at 20, 120Hz)
Leakage Current SIZE A~F: I0.01CV or 3uA, whichever is greater 2 minutes after Rated Voltage applied
SIZE G~J(6.3V~100V): I0.03CV whichever is greater 2 minutes after Rated Voltage applied
SIZE G~J (160V~450V): I0.04CV +100uA whichever is greater 5 minutes after rated voltage applied
Dissipation Factor 160~ 400~
Voltage (V) 6.3 10 16 25 35 50 63 100
( tan)Max (at 20, 120Hz) 250 450
SIZE A~F 0.45 0.35 0.28 0.18 0.16 0.14 0.12 0.12 - -
SIZE G~J 0.45 0.38 0.34 0.26 0.22 0.18 0.14 0.10 0.20 0.25
Stability at Low Temperature 160~ 400~
Voltage (V) 6.3 10 16 25 35 50 63 100
(at 120Hz) 250 450
Z -25 SIZE A~F 4 4 3 2 2 2 2 3 - -
/Z +20 SIZE G~J 5 4 3 2 2 2 2 2 3 6
Z-40 SIZE A~F 12 8 6 4 3 3 3 4
/Z 20 SIZE G~J 10 8 6 4 3 3 3 3 6 10
Load Life After the rated voltage Capacitance change Within ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
