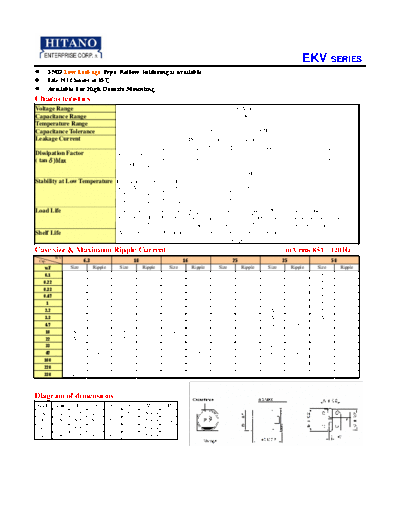

Image preview - the first page of the document
>> Download EKV (EKV_110524) documenatation <<
Text preview - extract from the document
EKV SERIES
SMD Low Leakage Type. Reflow Soldering is available.
Life 2000 hours at 85
Available For High Density Mounting
Characteristics
Voltage Range 6.3 to 50 VDC
Capacitance Range 0.1 to 330uF
Temperature Range -40 to +85
Capacitance Tolerance +20% -20% (at 20, 120Hz)
Leakage Current I0.002CV or 0.4uA, whichever is greater
2 minutes after Rated Voltage applied
Dissipation Factor Rated Voltage (V) 6.3 10 16 25 35 50
( tan)Max
D.F.( tan) 0.26 0.22 0.18 0.16 0.14 0.12
(at 20, 120Hz)
Stability at Low Temperature Impedance ration at 120Hz
Rated Voltage (V) 6.3 10 16 25 35 50
Z-25/Z 20 3 3 2 2 2 2
Z-40/Z 20 8 5 4 3 3 3
Load Life After the rated voltage has Capacitance change Within ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
