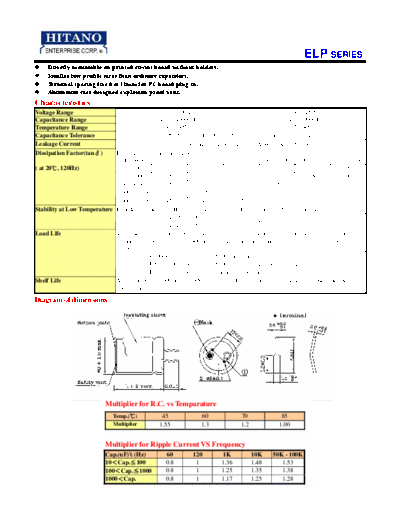

Image preview - the first page of the document



>> Download ELP (ELP_080522) documenatation <<

Text preview - extract from the document

                                                                                                          ELP SERIES
    Directly mountable on printed circuit board without holders.
    Smaller low profile sizes than ordinary capacitors.
    Terminal spacing fixed at 10mm for PC board plug in.
    Aluminum case designed explosionproof vent.
Characteristics
Voltage Range                                       16 ~ 100V                                        160 ~ 450V
Capacitance Range                                470 ~ 47000uF                                      47 ~ 2200uF
Temperature Range                                  -40 ~ +85                                        -25 ~ +85
Capacitance Tolerance
