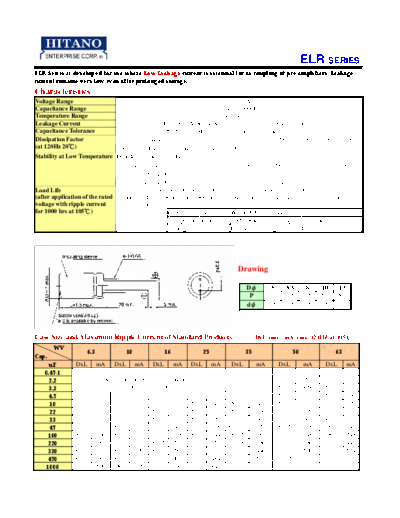

Image preview - the first page of the document



>> Download ELR (ELR_080319) documenatation <<

Text preview - extract from the document

                                                                                                                          ELR SERIES
ELR Series is developed for use where Low Leakage current is essential for as coupling of preamplifiers, Leakage
current remains very low even after prolonged storage.
Characteristics
Voltage Range                                                           6.3 ~ 63V
Capacitance Range                                                     0.47 ~ 1000uF
Temperature Range                                                     -40 ~ + 105
Leakage Current                                 I = 0.002CV or 0.4uA, whichever is greater (After 3 minutes)
Capacitance Tolerance
