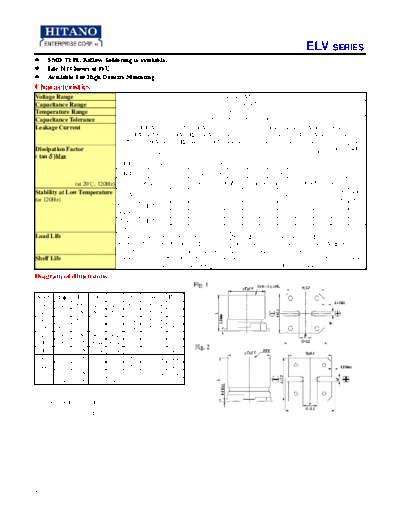

Image preview - the first page of the document
>> Download ELV (ELV_110524) documenatation <<
Text preview - extract from the document
ELV SERIES
SMD TYPE. Reflow Soldering is available.
Life 2000 hours at 85
Available For High Density Mounting
Characteristics
Voltage Range 4 to450 VDC
Capacitance Range 0.1 to 6800uF
Temperature Range -40 to +85
Capacitance Tolerance +20% -20% (at 20, 120Hz)
Leakage Current SIZE A~F: I0.01CV or 3uA, whichever is greater 2 minutes after Rated Voltage applied
SIZE G~J(6.3V~100V): I0.03CV whichever is greater 2 minutes after Rated Voltage applied
SIZE G~J (160V~450V): I0.04CV +100Ua whichever is greater 5 minutes after Rated Voltage applied
Dissipation Factor 160~ 400~
Voltage (V) 4 6.3 10 16 25 35 50 63 100
( tan)Max 250 450
SIZE A~F 0.4 0.26 0.22 0.18 0.16 0.12 0.10 0.10 0.10 - -
SIZE G~J - 0.38 0.34 0.30 0.26 0.22 0.18 0.14 0.10 0.20 0.25
(at 20, 120Hz) When the capacitance exceeds 1,000uF, 0.02 shall be added every 1,000uF increase.
Stability at Low Temperature 160~ 400~
Voltage (V) 4 6.3 10 16 25 35 50 63 100
(at 120Hz) 250 450
Z -25 SIZE A~F 7 4 4 3 2 2 2 2 2 - -
/Z +20 SIZE G~J 5 5 4 2 2 2 2 2 3 6
Z-40 SIZE A~F 15 8 5 4 3 3 3 3 3 - -
/Z +20 SIZE G~J 14 12 10 5 4 3 3 3 6 10
Load Life After the rated voltage Capacitance change Within ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
