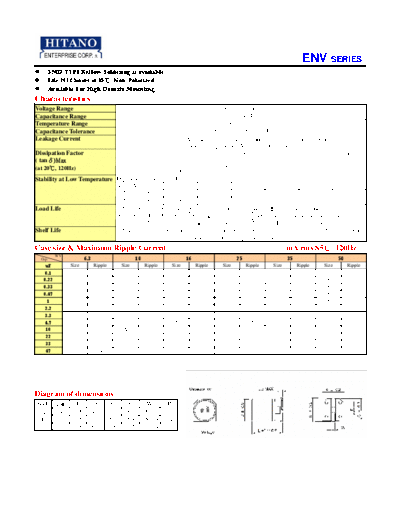

Image preview - the first page of the document
>> Download ENV (ENV_110524) documenatation <<
Text preview - extract from the document
ENV SERIES
SMD TYPE Reflow Soldering is available
Life 2000 hours at 85 NonPolarized
Available For High Density Mounting
Characteristics
Voltage Range 6.3 to 50VDC
Capacitance Range 0.1 to 47uF
Temperature Range -40 to +85
Capacitance Tolerance +20% -20% (at 20, 120Hz)
Leakage Current I0.01CV or 3uA, whichever is greater, 2 minutes after Rated Voltage applied,
where C = Rated Capacitance, V = Rated DC working voltage
Dissipation Factor Rated Voltage (V) 6.3 10 16 25 35 50
( tan)Max ( tan) 4 0.35 0.30 0.25 0.25 0.25 0.25
(at 20, 120Hz) ( tan) 5~6.3 0.30 0.25 0.20 0.15 0.15 0.15
Stability at Low Temperature Impedance ration at 120Hz
Rated Voltage (V) 6.3 10 16 25 35 50
Z-25/Z 20 3 3 2 2 2 2
Z-40/Z 20 8 5 4 3 3 3
Load Life After the rated voltage has Capacitance change Within ◦ Jabse Service Manual Search 2025 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
