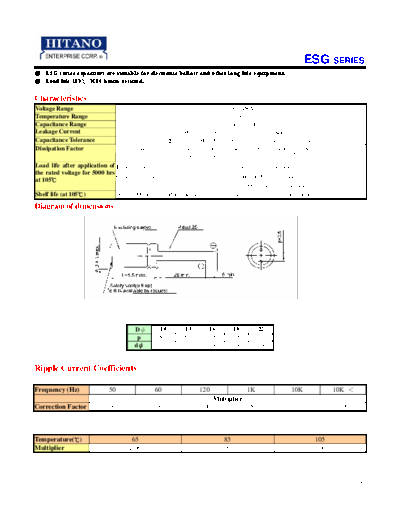

Image preview - the first page of the document



>> Download ESG (ESG_080319) documenatation <<

Text preview - extract from the document

                                                                                                              ESG SERIES
 ESG series capacitors are suitable for electronic ballast and other long life equipment.
 Load life 105, 5000 hours assured.

Characteristics
Voltage Range                                                               160 ~450V
Temperature Range                                                         -25 ~ + 105
Capacitance Range                                                          10 to 220 uF
Leakage Current                                         I0.04CV or 10uA, whichever is greater (After 2 minutes)
Capacitance Tolerance
