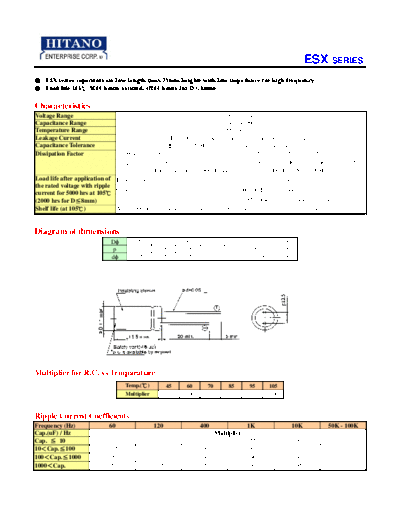

Image preview - the first page of the document



>> Download ESX (ESX_100609) documenatation <<

Text preview - extract from the document

                                                                                                                      ESX SERIES
 ESX series capacitors are low length (max 25mm height) with low impedance for high frequency.
 Load life 105, 5000 hours assured. (2000 hours for D8mm)

Characteristics
Voltage Range                                                                 6.3 ~ 63V
Capacitance Range                                                          0.47 ~4700uF
Temperature Range                                                           -55 ~ + 105
Leakage Current                                      I=0.01CV or 3uA, whichever is greater (After 2 minutes)
Capacitance Tolerance
