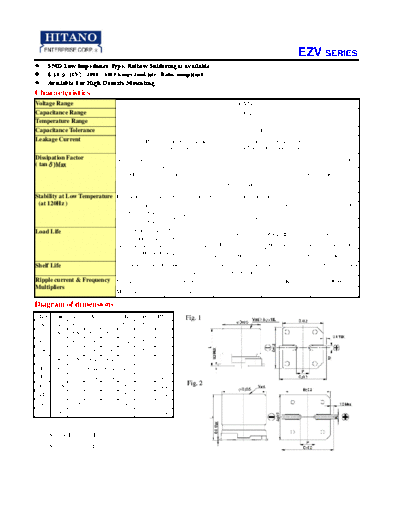

Image preview - the first page of the document
>> Download EZV (EZV_110524) documenatation <<
Text preview - extract from the document
EZV SERIES
SMD Low Impedance Type. Reflow Soldering is available.
4~18, 105, 2000 ~ 5000 hours load life., Rohs compliant
Available For High Density Mounting
Characteristics
Voltage Range 6.3 to 100 VDC
Capacitance Range 1.0 to 6800uF
Temperature Range -55 to +105
Capacitance Tolerance +/-20% (at 20, 120Hz)
Leakage Current I0.01CV or 3uA, whichever is greater, 2 minutes after Rated Voltage applied,
where C = Rated Capacitance, V = Rated DC working voltage
Dissipation Factor
Rated Voltage (V) 6.3 10 16 25 35 50 63 80 100
( tan)Max
D.F.( tan) 0.30 0.26 0.22 0.16 0.13 0.10 0.08 0.08 0.07
(at 20, 120Hz)
Stability at Low Temperature Impedance ratio shall not exceed the values given in the table below:
(at 120Hz ) Rated Voltage (V) 6.3 10 16 25 35 50 63 80 100
Z-25/Z 20 4 3 2 2 2 2 2 2 2
Z-55/Z 20 8 5 4 3 3 3 3 3 3
Load Life 2000hrs for D6.3mm, Capacitance change Within ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
