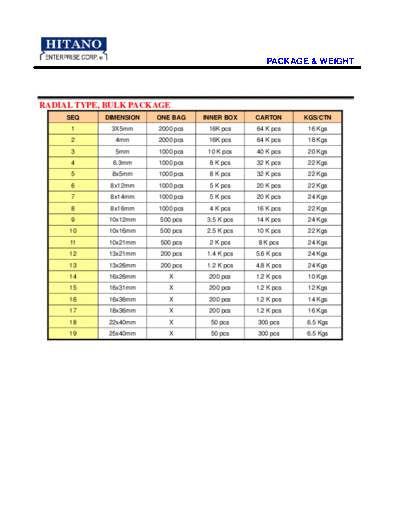

Image preview - the first page of the document
RADIAL Package (RADIAL_BULK_PACKAGE)


>> Download RADIAL Package (RADIAL_BULK_PACKAGE) documenatation <<

Text preview - extract from the document
                                                   PACKAGE & WEIGHT




RADIAL TYPE, BULK PACKAGE
     SEQ    DIMENSION   ONE BAG    INNER BOX    CARTON      KGS/CTN
      1      3X5mm      2000 pcs    16K pcs     64 K pcs     16 Kgs
      2       4mm       2000 pcs    16K pcs     64 K pcs     18 Kgs
      3       5mm       1000 pcs    10 K pcs    40 K pcs     20 Kgs
      4       6.3mm     1000 pcs    8 K pcs     32 K pcs     22 Kgs
      5      8x5mm      1000 pcs    8 K pcs     32 K pcs     22 Kgs
      6      8x12mm     1000 pcs    5 K pcs     20 K pcs     22 Kgs
      7      8x14mm     1000 pcs    5 K pcs     20 K pcs     24 Kgs
      8      8x16mm     1000 pcs    4 K pcs     16 K pcs     22 Kgs
      9      10x12mm    500 pcs     3.5 K pcs   14 K pcs     24 Kgs
     10      10x16mm    500 pcs     2.5 K pcs   10 K pcs     22 Kgs
     11      10x21mm    500 pcs     2 K pcs     8 K pcs      24 Kgs
     12      13x21mm    200 pcs     1.4 K pcs   5.6 K pcs    24 Kgs
     13      13x26mm    200 pcs     1.2 K pcs   4.8 K pcs    24 Kgs
     14      16x26mm       X        200 pcs     1.2 K pcs    10 Kgs
     15      16x31mm       X        200 pcs     1.2 K pcs    12 Kgs
     16      16x36mm       X        200 pcs     1.2 K pcs    14 Kgs
     17      18x36mm       X        200 pcs     1.2 K pcs    16 Kgs
     18      22x40mm       X         50 pcs     300 pcs     6.5 Kgs
     19      25x40mm       X         50 pcs     300 pcs     6.5 Kgs
