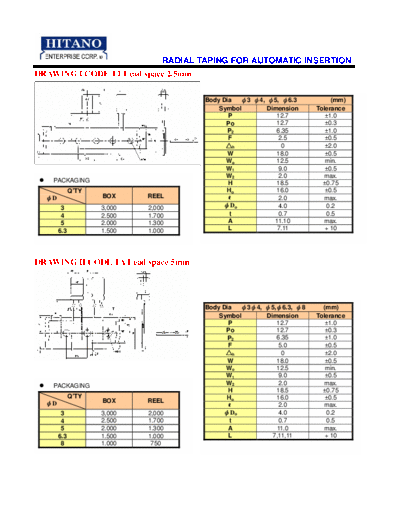

Image preview - the first page of the document



>> Download RADIAL TAPING Specification (E-RadialTap_080514) documenatation <<

Text preview - extract from the document

                               RADIAL TAPING FOR AUTOMATIC INSERTION
DRAWING I CODE T1 Lead space 2.5mm

                                       Body Dia  3 4, 5, 6.3            (mm)
                                           Symbol     Dimension   Tolerance
                                              P          12.7
