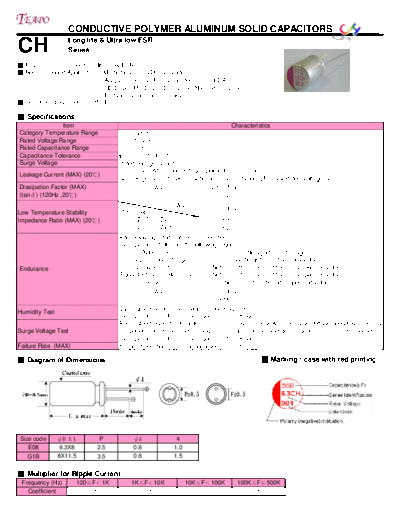

Image preview - the first page of the document



>> Download ch documenatation <<

Text preview - extract from the document

                   CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS
                   Long life & Ultra low ESR
CH                 Series

 Features: 105,5000hrs, Ultra Low ESR
 Recommended Applications: Motherboard, DC/DC Converter ,
                             Adapter , SPS ,VCR , camcorder , DSC , PDA,
                             HD Drive , MO Drive , DVD Drive, Navigation system,
                             Portable Communication Devices
 Corresponding product to RoHS

 Specifications
               Item                                                        Characteristics
Category Temperature Range          -55 ~ +105
Rated Voltage Range                2.5 ~ 16VDC
Rated Capacitance Range            270 ~ 820 F
Capacitance Tolerance
