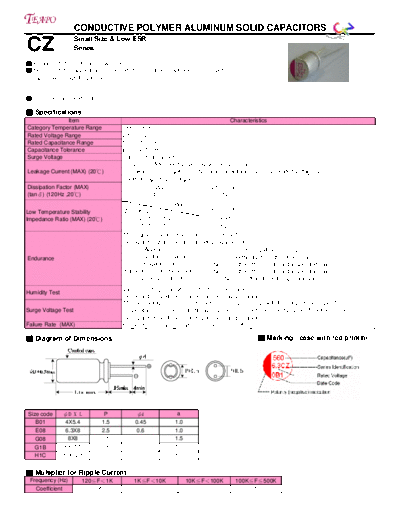

Image preview - the first page of the document



>> Download cz documenatation <<

Text preview - extract from the document

                     CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS
                     Small Size & Low ESR
CZ                   Series

 Features: 105,2000hrs, Low ESR
 Recommended Applications: Used switching requlator applications in computer.
Especially for high frequency.


 Corresponding product to RoHS

 Specifications
               Item                                                           Characteristics
Category Temperature Range           -55 ~ +105
Rated Voltage Range                 2.5 ~ 16VDC
Rated Capacitance Range             10 ~ 2200 F
Capacitance Tolerance
