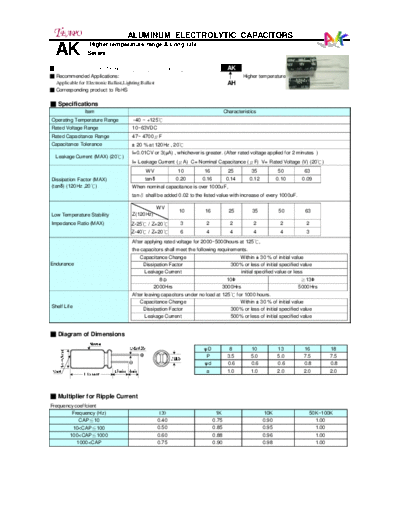

Image preview - the first page of the document



>> Download ak documenatation <<

Text preview - extract from the document

                               ALUMINUM ELECTROLYTIC CAPACITORS
               Higher temperature range & Long Life
  AK           Series

 Features125 2000~5000hrs High Temperature and Long Life                       AK
 Recommended Applications:                                                            Higher temperature
 Applicable for Electronic Ballast,Lighting Ballast                            AH
 Corresponding product to RoHS

 Specifications
              Item                                                            Characteristics
Operating Temperature Range     -40 ~ +125
Rated Voltage Range             10~63VDC
Rated Capacitance Range         47~ 4700F
Capacitance Tolerance
