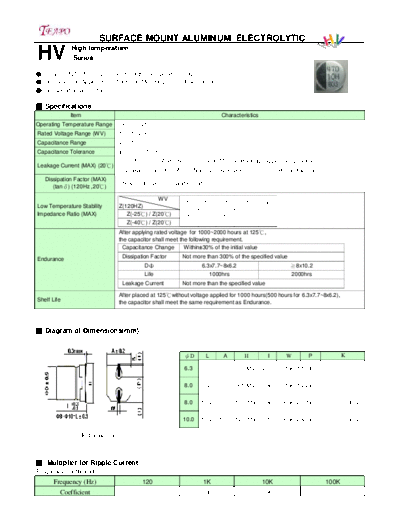

Image preview - the first page of the document
hv


>> Download hv documenatation <<

Text preview - extract from the document
                        SURFACE MOUNT ALUMINUM ELECTROLYTIC

HV           High temperature
             Series

Features : 1251000~ 2000 hours ,Higher temperature range
Recommended Applications: Automatic Mounting and Reflow Soldering
Corresponding product to RoHS

 Specifications
             Item                                                          Characteristics
Operating Temperature Range     -40 ~ +125
Rated Voltage Range (WV)        10 ~ 50VDC
Capacitance Range               47 ~ 1000F
Capacitance Tolerance
