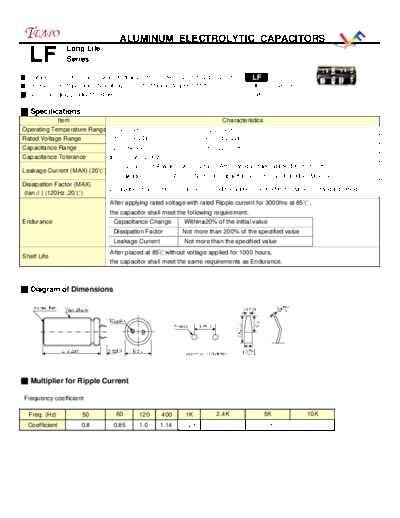

Image preview - the first page of the document



>> Download lf documenatation <<

Text preview - extract from the document

                                        ALUMINUM ELECTROLYTIC CAPACITORS
                  Long Life
   LF             Series

 Features : 85 3000 hours , Longer life than LH, Snap-in terminal, High ripple current      LF
 Recommended Applications: Smoothing circuit, TV/Monitor, Adapter, SMPS                              Long Life
 Corresponding product to RoHS                                                               LH

 Specifications
            Item                                                                  Characteristics
Operating Temperature Range           -40 ~ +85                           -25 ~ +85
Rated Voltage Range                  10 ~ 100VDC                         160 ~ 450VDC
Capacitance Range                   820 ~ 56000F                  56 ~ 2200F
Capacitance Tolerance
