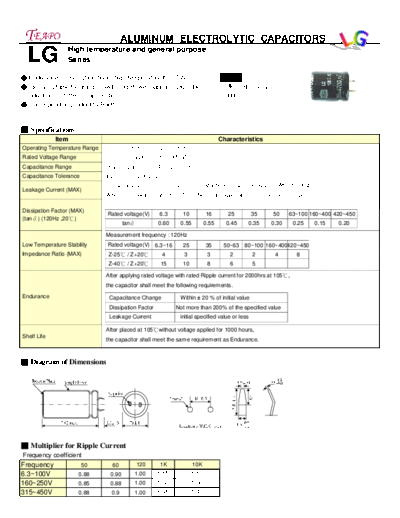

Image preview - the first page of the document



>> Download lg documenatation <<

Text preview - extract from the document

                                       ALUMINUM ELECTROLYTIC CAPACITORS
                 High temperature and general purpose
  LG             Series

 Endurance : 105 2000 hours,high temperature than TW                               LG
 Ideally suitable for using in Switching Power Supplies and orther                        High temperature
industrial /commercial applications                                                LH
 Corresponding product to RoHS



 Specifications
             Item                                                                Characteristics
Operating Temperature Range      -40 ~ +105          -25 ~ +105
Rated Voltage Range             6.3 ~ 100VDC         160 ~ 450VDC
Capacitance Range              560 ~ 82000F          47 ~ 2200F
Capacitance Tolerance
