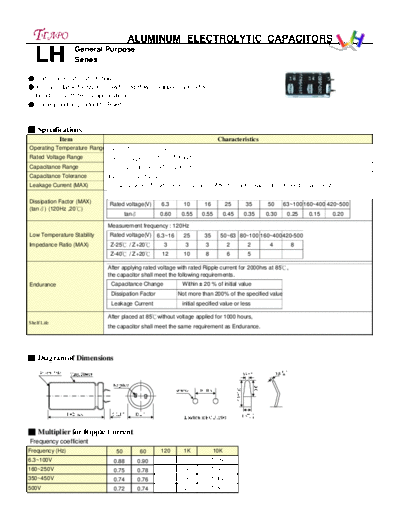

Image preview - the first page of the document



>> Download lh documenatation <<

Text preview - extract from the document

                                      ALUMINUM ELECTROLYTIC CAPACITORS
                    General Purpose
   LH               Series

 Endurance : 85 2000 hours
 Ideally suitable for using in Switching Power Supplies and orther
industrial /commercial applications
 Corresponding product to RoHS



 Specifications
             Item                                                           Characteristics
Operating Temperature Range -40~+85                 -25~+85
Rated Voltage Range          6.3 ~ 100VDC          160 ~ 500VDC
Capacitance Range            820 ~ 120000F         47 ~ 2200F
Capacitance Tolerance
