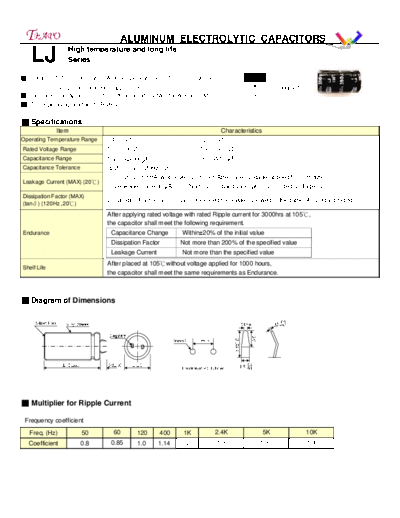

Image preview - the first page of the document



>> Download lj documenatation <<

Text preview - extract from the document

                                       ALUMINUM ELECTROLYTIC CAPACITORS
                 High temperature and long life
   LJ            Series

 Features : 105 3000 hours , Wide temperature range for LF , Longer life than LG,    LJ
         Snap-in terminal, High ripple current                                                    Long Life
 Recommended Applications: Smoothing circuit, TV/Monitor,Adapter, SMPS                LG
 Corresponding product to RoHS

 Specifications
             Item                                                          Characteristics
Operating Temperature Range      -40 ~ +105                         -25 ~ +105
Rated Voltage Range             10 ~ 100VDC                        160 ~ 450VDC
Capacitance Range               560 ~ 68000F                       56 ~ 2200F
Capacitance Tolerance
