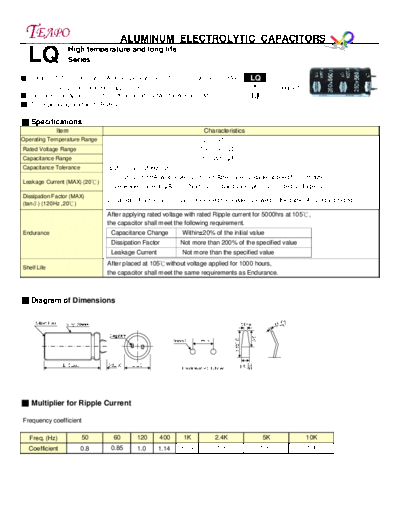

Image preview - the first page of the document



>> Download lq documenatation <<

Text preview - extract from the document

                                       ALUMINUM ELECTROLYTIC CAPACITORS
                 High temperature and long life
  LQ             Series

 Features : 105 5000 hours , Wide temperature range for LF , Longer life than HW,     LQ
         Snap-in terminal, High ripple current                                                    Long Life
 Recommended Applications: Smoothing circuit, TV/Monitor,Adapter, SMPS                LJ
 Corresponding product to RoHS

 Specifications
             Item                                                   Characteristics
Operating Temperature Range                                        -25 ~ +105
Rated Voltage Range                                               160 ~ 450VDC
Capacitance Range                                                 26 ~ 2200F
Capacitance Tolerance
