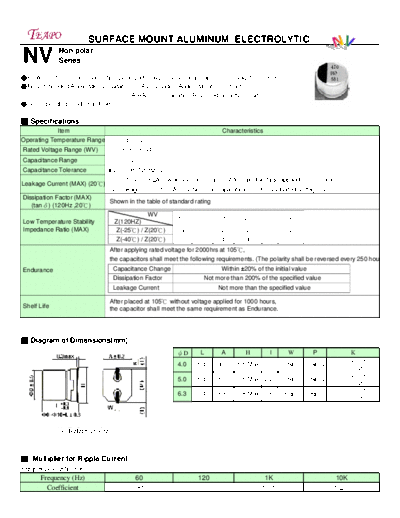

Image preview - the first page of the document



>> Download nv documenatation <<

Text preview - extract from the document

                         SURFACE MOUNT ALUMINUM ELECTROLYTIC

NV           Non-polar
             Series

Features :105 2000 hours,Non-polarized,Low profile vertical chip, 5.5mm height (6.3)
Recommended Applications: Suitable for AV(TV,Video,Audio),Monitor/Computer,
                                 OA/HA/Communication,Reversed polarity circuit
Corresponding product to RoHS

 Specifications
             Item                                                            Characteristics
Operating Temperature Range              -40 ~ +105
Rated Voltage Range (WV)                 6.3 ~ 35VDC
Capacitance Range                       0.22 ~ 47F
Capacitance Tolerance
