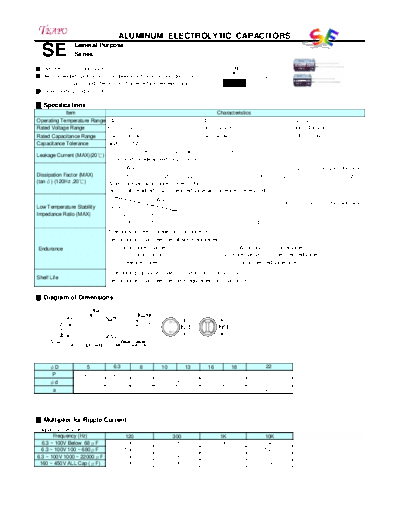

Image preview - the first page of the document



>> Download se documenatation <<

Text preview - extract from the document

                                   ALUMINUM ELECTROLYTIC CAPACITORS
                General Purpose
  SE            Series

 Features: 105 1000 hours                                                                  SH
 Recommended Applications: For general purpose coupling,decoupling ,                             Long Life
           by pass , and filtering circuit in entertainment electronics                    SE
Corresponding product to RoHS

 Specifications
            Item                                                                    Characteristics
Operating Temperature Range -40~+105                                       -40~+105                                    -25~+105
Rated Voltage Range         6.3 ~ 100VDC                                  160 ~ 250VDC                                350 ~ 450VDC
Rated Capacitance Range     0.47 ~ 15000F                                 0.47 ~ 470F                                 0.47 ~ 150F
Capacitance Tolerance
