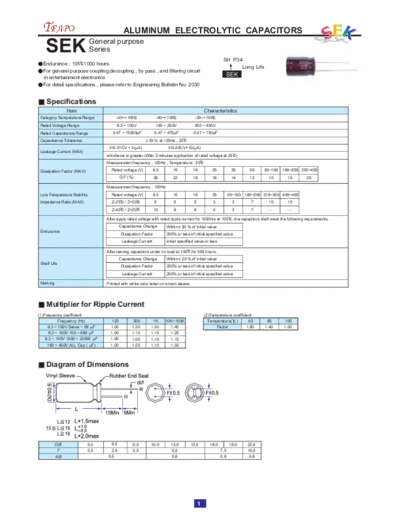

Image preview - the first page of the document



>> Download sek documenatation <<

Text preview - extract from the document

                                            ALUMINUM ELECTROLYTIC CAPACITORS

    SEK                      General purpose
                             Series
                                                                                                         SH P34
  Endurance : 105 1000 hours
                                                                                                               Long Life
  For general purpose coupling,decoupling , by pass , and filtering circuit
  in entertainment electronics
                                                                                                          SEK
  For detail specifications , please refer to Engineering Bulletin No. 2030


    Specifications
                Item                                                                          Characteristics
 Category Temperature Range            -40~+105                  -40~+105              -25~+105
 Rated Voltage Range                   6.3 ~ 100V                160 ~ 250V            350 ~ 450V
 Rated Capacitance Range             0.47 ~ 15000
