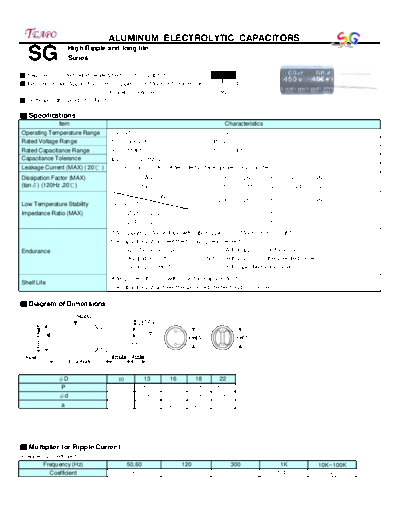

Image preview - the first page of the document



>> Download sg documenatation <<

Text preview - extract from the document

                                 ALUMINUM ELECTROLYTIC CAPACITORS
                   High Ripple and long life
   SG              Series

 Features: High temperature life time 5000 hours at 105                         SG
 Recommended Applications : High ripple current for Electronic Ballast ,                Long Life
                                   Power Supply...etc                           SQ
 Corresponding product to RoHS

 Specifications
             Item                                                                Characteristics
Operating Temperature Range        -40~+105                                   -25~+105
Rated Voltage Range                160 ~ 400VDC                               450VDC
Rated Capacitance Range            4.7 ~ 330F                                 3.3 ~ 100F
Capacitance Tolerance
