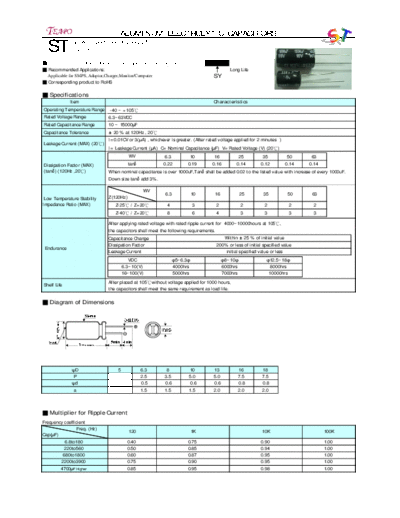

Image preview - the first page of the document



>> Download st documenatation <<

Text preview - extract from the document

                                   ALUMINUM ELECTROLYTIC CAPACITORS

  ST           Low Impedance & Long Life
               Series

 Features105 4000~10000hrs Low Impedance and long Life                            ST
 Recommended Applications:                                                                   Long Life
 Applicable for SMPS, Adaptor,Charger,Monitor/Computer                            SY
 Corresponding product to RoHS

 Specifications
             Item                                                                 Characteristics
Operating Temperature Range   -40 ~ +105
Rated Voltage Range           6.3~63VDC
Rated Capacitance Range       10 ~ 15000F
Capacitance Tolerance
