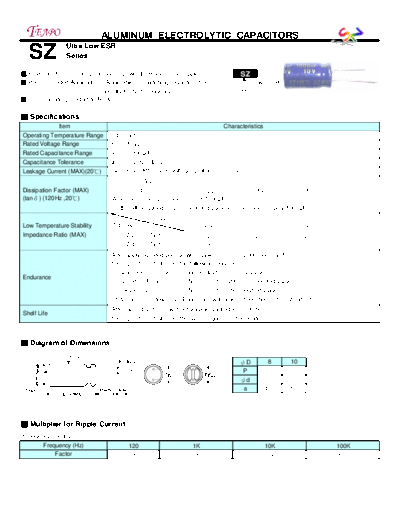

Image preview - the first page of the document



>> Download sz documenatation <<

Text preview - extract from the document

                            ALUMINUM ELECTROLYTIC CAPACITORS
                Ultra Low ESR
  SZ            Series

 Features: 105 1000~2000 hours ,Lower ESR and higher ripple current              SZ
 Recommended Applications: Applicable for switching regulator of computer,            Low E.S.R
                         especially for high frequency                           SC
 Corresponding product to RoHS


 Specifications
              Item                                                        Characteristics
Operating Temperature Range      -40 ~ +105
Rated Voltage Range             6.3 ~ 16VDC
Rated Capacitance Range         470 ~ 3300  F
Capacitance Tolerance
