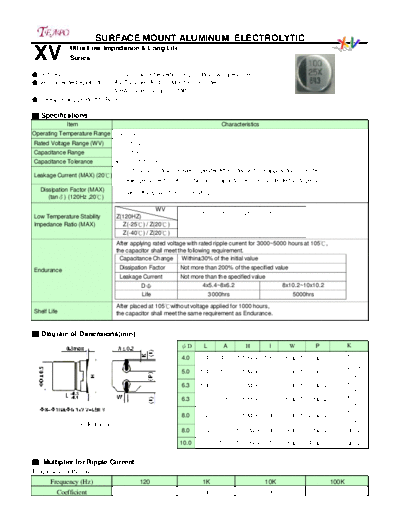

Image preview - the first page of the document



>> Download xv documenatation <<

Text preview - extract from the document

                        SURFACE MOUNT ALUMINUM ELECTROLYTIC

XV           Ultra Low Impedance & Long Life
             Series

Features : 105 3000~5000 hours , Low profile vertical chip, Ultra low impedance
Recommended Applications: AV(TV,Video,Audio) ,Monitor/Computer,
                          OA/HA/Communication ,SMPS
Corresponding product to RoHS

 Specifications
             Item                                                         Characteristics
Operating Temperature Range     -40 ~ +105
Rated Voltage Range (WV)        6.3 ~ 50VDC
Capacitance Range               1.0 ~ 1000F
Capacitance Tolerance
