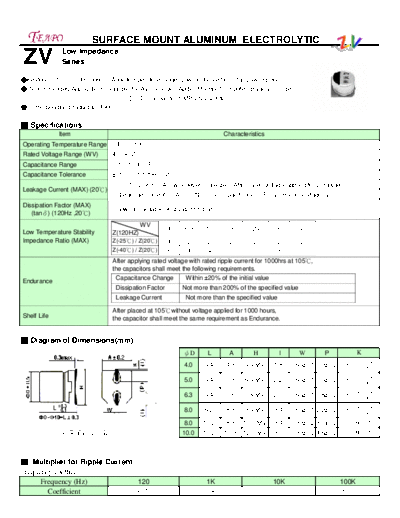

Image preview - the first page of the document



>> Download zv documenatation <<

Text preview - extract from the document

                           SURFACE MOUNT ALUMINUM ELECTROLYTIC

 ZV           Low Impedance
              Series

Features : 105 1000 hours , Wide temperature range, Low profile vertical chip,Low impedance
Recommended Applications: Suitable for AV(TV,Video,Audio),Monitor/Computer, Battery charger,
                                          DC/DC converter,SMPS,Noise filter
Corresponding product to RoHS

 Specifications
             Item                                                            Characteristics
Operating Temperature Range         -40 ~ +105
Rated Voltage Range (WV)            4 ~ 50VDC
Capacitance Range                   0.1 ~ 1500F
Capacitance Tolerance
