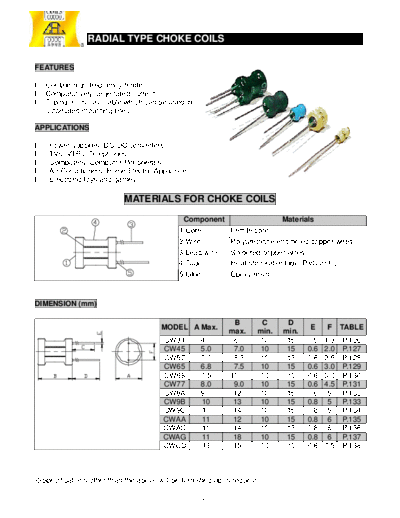

Image preview - the first page of the document
>> Download CW documenatation <<
Text preview - extract from the document
RADIAL TYPE CHOKE COILS
FEATURES
l Contain high-frequency ferrite.
l Comparatively large rated current.
l Taping is also available which can be used in
automated mounting lines.
APPLICATIONS
l Power supplies, DC-DC converters
l TVs, VTRs, Telephones
l Computers, Computer Peripherals,
l Air-Conditioners, Home Electric Appliance
l Electronic toys and games
MATERIALS FOR CHOKE COILS
Component Materials
1.Core Ferrite core
2.Wire Polyurethane enameled copper wires
3.Lead wire Soldered copper wires
4.Tube Heat shrinkable tube, PVC or UL
5.Glue Epoxy resin
DIMENSION (mm)
B C D
MODEL A Max. E F TABLE
max. min. min.
CW34 4.0 6.0 10 15 0.5 1.3 P.126
CW45 5.0 7.0 10 15 0.6 2.0 P.127
CW57 7.0 8.5 10 15 0.6 2.5 P.128
CW65 6.8 7.5 10 15 0.6 3.0 P.129
CW68 7.5 10.0 10 15 0.6 3.0 P.130
CW77 8.0 9.0 10 15 0.6 4.5 P.131
CW8A 9.0 12 10 15 0.6 5 P.132
CW9B 10 13 10 15 0.8 5 P.133
CW9C 10 14 10 15 0.8 5 P.134
CWAA 11 12 10 15 0.8 6 P.135
CWAC 11 14 10 15 0.8 6 P.136
CWAG 11 18 10 15 0.8 6 P.137
CWCD 13 15 10 15 0.8 7.5 P.138
Specifications other than the above will be furnished upon request.
125
RADIAL TYPE CHOKE COILS
Specification table of Radial type Choke Coils CW34 (H500-0068)
TURNS WIRE INDUCTANCE UNLOADED D.C.R. RATED CURRENT
S.R.F. (A) Max.
PART No. STAMP (T) (mm) (H) Q () (MHz)
Ref. Within Min. Max. Ref.
2UEW Idc1 Idc2
CW34-1R0M 1R0M 10◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
