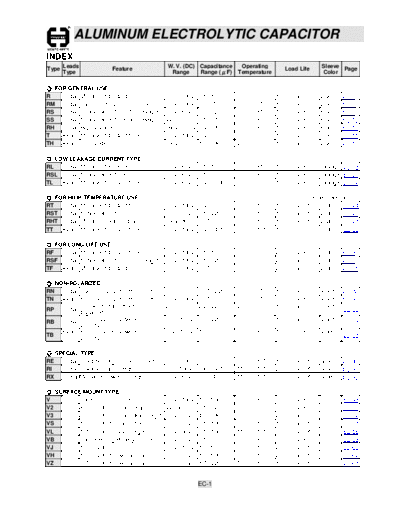

Image preview - the first page of the document
>> Download ec01 documenatation <<
Text preview - extract from the document
ALUMINUM ELECTROLYTIC CAPACITOR
INDEX
Leads W. V. (DC) Capacitance Operating Sleeve
Type Feature Load Life Page
Type Range Range (F) Temperature Color
FOR GENERAL USE
R Radial Miniature Standard Size 6.3V~ 100V 0.1~ 10,000 -40~ +85 1000 hr at 85 Blue EC-3
RM Radial Can Size 8x12mm, L.S. 5mm 6.3V~ 100V 10~ 470 -40~ +85 1000 hr at 85 Blue EC-6
RS Radial Subminiature Size, 7mm Height 6.3V~ 63V 0.1~ 220 -40~ +85 1000 hr at 85 Blue EC-8
SS Radial Subminiature Size, 5mm Height 4V~ 63V 0.1~ 47 -40~ +85 1000 hr at 85 Blue EC-10
RH Radial High Voltage 160V~ 450V 0.47~ 330 -25~ +85 1000 hr at 85 Blue EC-12
T Axial Miniature Standard Size 6.3V~ 100V 0.47~ 10,000 -40~ +85 1000 hr at 85 Blue EC-14
TH Axial High Voltage 160V~ 450V 1.0~ 330 -25~ +85 1000 hr at 85 Blue EC-16
LOW LEAKAGE CURRENT TYPE
RL Radial Miniature Standard Size 6.3V~ 63V 0.1~ 1,000 -40~ +85 1000 hr at 85 Orange EC-18
RSL Radial Subminiature Size 6.3V~ 63V 0.1~ 220 -40~ +85 1000 hr at 85 Orange EC-20
TL Axial Miniature Standard Size 6.3V~ 63V 0.47~ 1,000 -40~ +85 1000 hr at 85 Orange EC-22
FOR HIGH TEMPERATURE USE *D Blue: Dark Blue
RT Radial Miniature Standard Size 6.3V~ 100V 0.47~ 10,000 -40~ +105 1000 hr at 105 D Blue* EC-24
RST Radial Subminiature Size 6.3V~ 63V 0.1~ 220 -40~ +105 1000 hr at 105 D Blue EC-26
RHT Radial Miniature, High Voltage 160V~400V 0.47~1,000 -40~ +105 1000 hr at 105 D Blue EC-28
TT Axial Miniature Standard Size 6.3V~ 100V 0.47~ 4,700 -40~ +105 1000 hr at 105 D Blue EC-30
FOR LONG LIFE USE
RF Radial Miniature Standard Size 6.3V~ 100V 0.1~ 10,000 -40~ +85 2000 hr at 85 D Blue EC-3
RSF Radial Subminiature Size, 7mm Height 6.3V~ 100V 0.1~ 220 -40~ +85 2000 hr at 85 D Blue EC-8
TF Axial Miniature Standard Size 6.3V~ 100V 0.47~ 10,000 -40~ +85 2000 hr at 85 D Blue EC-14
NON-POLARIZED
RN Radial For Reversing Polarity Circuits 6.3V~ 100V 0.47~ 2,200 -40~ +85 1000 hr at 85 Violet EC-32
TN Axial For Reversing Polarity Circuits 6.3V~ 100V 0.47~ 1,000 -40~ +85 1000 hr at 85 Violet EC-34
For Horizontal Deflection 25V~ 50V 2.2~ 22 -25~ +85 1000 hr at 85 Violet
RP Radial EC-36
Equalization
For Crossover Network, 50V~ 100V 1.0~ 220 -40~ +85 1000 hr at 85 Violet
RB Radial EC-38
D.F.=12%
Axial For Crossover Network, 50V~ 100V 1.0~ 220 -40~ +85 1000 hr at 85 Violet
TB EC-38
D.F.=12%
SPECIAL TYPE
RE Radial Low ESR, High Ripple Current 6.3V~ 100V 1.0 ~ 1,000 -40~ +105 1000 hr at 105 Green EC-40
RI Radial Low Impedance, High R. C. 10v~ 100V 100 ~ 4,700 -55~ +105 2000 hr at 105 Green EC-43
RX Radial Miniature, Low ESR, High R.C. 6.3V~ 63V 1.0 ~ 4,700 -55~ +105 2000 hr at 105 Green EC-45
SURFACE MOUNT TYPE
V For 85 2000 hours 6.3V~ 100V 10~ 1,000 -40~ +85 2000 hr at 85 EC-48
V2 85 2000hr 5.5mm height 4V~ 50V 0.1~ 220 -40~ +85 2000 hr at 85 EC-50
V3 85 2000hr 5.5mm, 8mm height 6.3V~ 50V 4.7~ 330 -40~ +85 2000 hr at 85 EC-52
VS 105 1000hr 5.5mm height 6.3V~ 50V 0.1~ 100 -55~ +105 1000 hr at 105 EC-54
VL 105 2000hr 6mm height 6.3V~ 50V 0.1~ 100 -55~ +105 2000 hr at 105 EC-56
VB For Reversing Polarity Circuits 6.3V~ 50V 0.1~ 47 -40~ +85 2000 hr at 85 EC-58
VJ 105 2000hr 6.3V~ 100V 10~ 470 -55~ +105 2000 hr at 105 EC-60
VH 105 2000hr low impedance 6.3V~ 35V 47~ 1,000 -55~ +105 2000 hr at 105 EC-62
VZ 105 1000hr low impedance 6.3V~ 35V 4.7~ 220 -55~ +105 1000 hr at 105 EC-64
