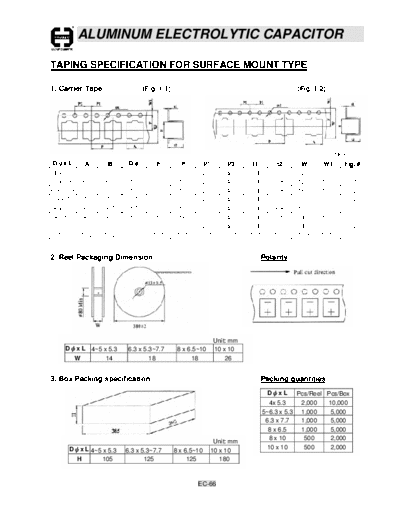

Image preview - the first page of the document
>> Download ec66 documenatation <<
Text preview - extract from the document
ALUMINUM ELECTROLYTIC CAPACITOR
TAPING SPECIFICATION FOR SURFACE MOUNT TYPE
1. Carrier Tape (Fig. 1-1) (Fig. 1-2)
Unit: mm
Dx L A B D F P P1 P2 t1 t2 W W1 Fig. #
4 x 5.3 5.0 5.0 1.5 5.5 8 2.0 4.0 0.4 5.8 12.0 1.75 1-1
5 x 5.3 6.0 6.0 1.5 5.5 12 2.0 4.0 0.4 5.8 12.0 1.75 1-1
6.3 x 5.3 7.0 7.0 1.5 7.5 12 2.0 4.0 0.4 5.8 16.0 1.75 1-2
6.3 x 7.7 7.0 7.0 1.5 7.5 12 2.0 4.0 0.4 8.3 16.0 1.75 1-2
8 x 6.5 8.7 8.7 1.5 7.5 12 2.0 4.0 0.4 6.8 16.0 1.75 1-2
8 x 10 8.7 8.7 1.5 11.5 16 2.0 4.0 0.4 11 24.0 1.75 1-2
10 x 10 10.7 10.7 1.5 11.5 16 2.0 4.0 0.4 11 24.0 1.75 1-2
