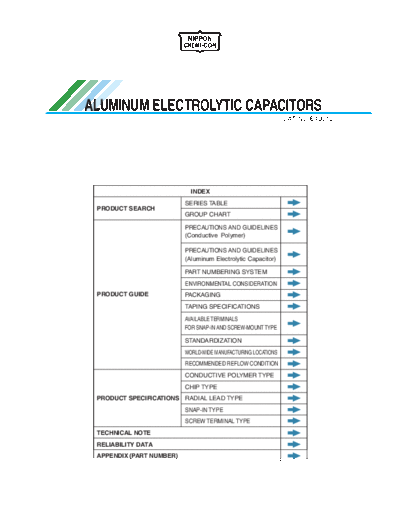

Image preview - the first page of the document
>> Download UCC 2011 INTERACTIVE CATALOG FULL SERIES documenatation <<
Text preview - extract from the document
ALUMINUM ELECTROLYTIC CAPACITORS
ALUMINUM ELECTROLYTIC CAPACITORS
CAT. No. E1001L
INDEX
SERIES TABLE
PRODUCT SEARCH
GROUP CHART
PRECAUTIONS AND GUIDELINES
(Conductive Polymer)
PRECAUTIONS AND GUIDELINES
(Aluminum Electrolytic Capacitor)
PART NUMBERING SYSTEM
ENVIRONMENTAL CONSIDERATION
PRODUCT GUIDE PACKAGING
TAPING SPECIFICATIONS
AVAILABLE TERMINALS
FOR SNAP-IN AND SCREW-MOUNT TYPE
STANDARDIZATION
WORLD-WIDE MANUFACTURING LOCATIONS
RECOMMENDED REFLOW CONDITION
CONDUCTIVE POLYMER TYPE
CHIP TYPE
PRODUCT SPECIFICATIONS RADIAL LEAD TYPE
SNAP-IN TYPE
SCREW TERMINAL TYPE
TECHNICAL NOTE
RELIABILITY DATA
APPENDIX (PART NUMBER)
ALUMINUM ELECTROLYTIC CAPACITORS
CAPACITOR SERIES TABLE, CONTENTS
Solvent resistant
Low impedance
Standard Type
Rated
Capacitance
Endurance Terminal voltage
Series Features range range
(+R=With ripple) type
(Vdc) (F)
PXK NEW! Super low ESR, high ripple current, downsized 105 1,000 to 2,000 hours SMD 2.5 to 16 100 to 560
Conductive Polymer Electrolyte Type
PXS Long life, super low ESR, high ripple current 105 5,000 hours SMD 4 to 16 22 to 560
Surface PXF Upgrade! Super low ESR, high ripple current 105 2,000 hours SMD 2 to 6.3 150 to 1,000
Mount
Type PXE Super low ESR, high ripple current 105 2,000 hours SMD 2.5 to 16 33 to 2,700
PXA Super low ESR, high ripple current 105 1,000 to 2,000 hours SMD 2.5 to 25 3.3 to 1,500
PXH 125 , super low ESR, high ripple current 125 1,000 hours SMD 2.5 to 20 22 to 1,000
PSG NEW! Long life, super low ESR, high ripple current 105 2,000 to 5,000 hours Radial 16 to 20 120 to 1,000
PSK NEW! Long life, super low ESR, high ripple current 105 5,000 hours Radial 2.5 220 to 560
Radial Lead PSF Upgrade! Long life, super low ESR, high ripple current 105 5,000 hours Radial 2.5 to 16 100 to 1,600
Type PSE Long life, super low ESR, high ripple current 105 5,000 hours Radial 2.5 to 6.3 470 to 820
PSC Super low ESR, high ripple current 105 2,000 hours Radial 2.5 to 16 270 to 2,700
PSA Super low ESR, high ripple current 105 2,000 hours Radial 2.5 to 16 47 to 1,500
PS Super low ESR, high ripple current 105 2,000 hours Radial 2.5 to 35 18 to 1,500
General MVA 85 ,standard 85 2,000 hours SMD 4 to 450 1.0 to 10,000
Purpose MVE 105 , standard 105 1,000 to 2,000 hours SMD 6.3 to 450 1.0 to 6,800
MZJ NEW! Super low ESR 105 2,000 hours SMD 6.3 to 35 10 to 1,800
MZA Super low impedance 105 2,000 hours SMD 6.3 to 80 3.3 to 1,500
Low MVY Low impedance, standard, Case size 4 to 18mm 105 1,000 to 5,000 hours SMD 6.3 to 100 1.0 to 8,200
Impedance MZF NEW! 10,000 hours, Long life, low impedance 105 10,000 hours SMD 6.3 to 50 10 to 470
MZE 7,000/8,000 hours, Long life, low impedance 105 7,000 to 8,000 hours SMD 6.3 to 50 10 to 470
Surface Mount Type
MZK NEW! 5,000 hours, Long life, low impedance 105 5,000 hours SMD 6.3 to 35 10 to 150
MLA 3,000 hours, Long life, low impedance 105 3,000 hours SMD 6.3 to 50 10 to 1,000
MLF NEW! 10,000 hours, Long life 105 10,000 hours SMD 6.3 to 50 1.0 to 1,000
MLE 7,000/8,000 hours, Long life 105 7,000 to 8,000 hours SMD 6.3 to 50 1.0 to 1,000
Long Life MLK NEW! 5,000 hours, Long life 105 5,000 hours SMD 6.3 to 35 4.7 to 100
MVL 3,000/5,000 hours, Long life 105 3,000 to 5,000 hours SMD 6.3 to 50 1.0 to 1,000
MVJ 2,000 hours, Long life 105 2,000 hours SMD 6.3 to 50 1.0 to 100
MVH 125 , Case size 6.3 to 18mm 125 1,000 to 5,000 hours SMD 10 to 450 3.3 to 4,700
MHB Upgrade! 125 , Specified ESR after endurance 125 2,000 hours SMD 10 to 35 47 to 470
Special MHJ NEW! 125 , Specified ESR after endurance 125 2,000 hours SMD 10 to 35 47 to 470
Application MKB Specified ESR at low temperature 105 3,000 hours SMD 400 2.2 to 4.7
MV-BP Bi-polar 85 2,000 hours SMD 6.3 to 50 1.0 to 47
MVK-BP Bi-polar 105 1,000 hours SMD 6.3 to 50 1.0 to 47
SRM 5mm height, downsized 85 1,000 hours Radial 4 to 50 1.0 to 330
SRE 85 , 5mm height, standard 85 1,000 hours Radial 4 to 50 1.0 to 100
KRE 105 , 5mm height, standard 105 1,000 hours Radial 6.3 to 50 1.0 to 100
Low Profile SRA 85 , 7mm height, standard 85 1,000 hours Radial 4 to 63 1.0 to 470
KMA 105 , 7mm height, standard 105 1,000 hours Radial 4 to 63 1.0 to 220
SRG 4 7 to 18 25mm, low profile 85 1,000 to 2,000 hours Radial 4 to 50 1.0 to 10,000
KRG 4 7 to 18 25mm, low profile 105 1,000 hours Radial 6.3 to 50 1.0 to 10,000
SMQ 85 , Downsized 85 2,000 hours Radial 6.3 to 450 1.0 to 47,000
KMQ 105 , Downsized 105 1,000 to 2,000 hours +R Radial 6.3 to 450 1.0 to 47,000
Radial Lead Type
General SMG 85 , standard 85 2,000 hours Radial 6.3 to 450 1.0 to 39,000
Purpose KMG 105 , standard 105 1,000 to 2,000 hours +R Radial 6.3 to 450 1.0 to 22,000
SME-BP Bi-polar, downsized 85 2,000 hours Radial 6.3 to 100 1.0 to 6,800
KME-BP Bi-polar, downsized 105 1,000 hours Radial 6.3 to 100 1.0 to 6,800
KZM Long life, super low impedance 105 6,000 to 10,000 hours +R Radial 6.3 to 50 27 to 10,000
KZH Super low impedance, downsized 105 5,000 to 6,000 hours +R Radial 6.3 to 35 47 to 8,200
KZE Low impedance, downsized 105 1,000 to 5,000 hours +R Radial 6.3 to 100 6.8 to 6,800
KYA NEW! Low impedance, downsized 105 4,000 to 10,000 hours +R Radial 6.3 to 100 1 to 15,000
High
Frequency KY Low impedance, standard 105 4,000 to 10,000 hours +R Radial 6.3 to 100 1.0 to 18,000
Use Low impedance, downsized
LZA NEW!
(Ask Engineering Bulletin No804 in detail)
105 4,000 to 5,000 hours +R Radial 6.3 to 35 330 to 6,800
LXZ Low impedance, downsized 105 2,000 to 8,000 hours +R Radial 6.3 to 63 12 to 18,000
LXY Low impedance 105 2,000 to 8,000 hours +R Radial 10 to 63 10 to 8,200
LXV Low impedance 105 2,000 to 5,000 hours +R Radial 6.3 to 100 5.6 to 15,000
: Recommendation products : Some of range are solvent resistant.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/2) CAT. No. E1001L
ALUMINUM ELECTROLYTIC CAPACITORS
CAPACITOR SERIES TABLE, CONTENTS
Solvent resistant
Low impedance
Standard Type
Rated
Capacitance
Endurance Terminal voltage
Series Features range range
(+R=With ripple) type
(Vdc) (F)
KXJ Long life, downsized, for input filtering 105 10,000 to 12,000 hours +R Radial 160 to 450 6.8 to 680
KXG Long life, downsized, for input filtering 105 8,000 to 10,000 hours +R Radial 160 to 450 6.8 to 330
SMH For input filtering, 20 20 to 22 50mm 85 2,000 hours +R Radial 160 to 450 33 to 470
(Ask Engineering Bulletin No808 in detail)
KMH For input filtering, 20 20 to 22 50mm 105 2,000 hours +R Radial 160 to 450 33 to 470
(Ask Engineering Bulletin No810 in detail)
PAG Low profile, for input filtering 105 2,000 hours +R Radial 200 to 450 18 to 560
High KLJ No sparks with DC overvoltage, downsized 105 2,000 hours +R Radial 200 & 400 4.7 to 330
Radial Lead Type
Reliability KLG No sparks with DC overvoltage 105 2,000 hours +R Radial 200 & 400 22 to 330
FL Long life, downsized 105 3,000 hours +R Radial 6.3 to 50 1.0 to 270
GPA 125 , low impedance, downsized 125 3,000 to 5,000 hours +R Radial 25 to 50 470 to 6,800
GXE 125 , low impedance, downsized 125 2,000 to 5,000 hours +R Radial 10 to 450 4.7 to 4,700
GXL 125 125 5,000 hours +R Radial 10 to 50 100 to 1,000
GXH NEW! 135 135 1,500 / 2,000 hours +R Radial 10 to 50 100 to 4,700
LBG For airbag 105 5,000 hours +R Radial 25 & 35 1,000 to 11,000
KZA For PC motherboard 105 2,000 hours +R Radial 6.3 to 16 470 to 3,300
Special (Ask Engineering Bulletin No809 in detail)
Application LLA Low DC leakage, general 85 1,000 hours Radial 6.3 to 50 1.0 to 15,000
(Ask Engineering Bulletin No575 in detail)
PH For photo flash 55 5,000 times charging Radial 300 & 330 -
SMQ 85 , standard 85 2,000 hours +R Pin 160 to 450 82 to 3,900
KMW NEW! Super downsized 105 2,000 hours +R Pin 400 to 450 120 to 1,000
(Ask Engineering Bulletin No806 in detail)
KMR Super downsized 105 2,000 hours +R Pin 160 to 450 100 to 3,300
KMQ 105 , standard 105 2,000 hours +R Pin 35, 50, 160 to 450 68 to 33,000
KMT NEW! High ripple 105 2,000 hours +R Pin 420 & 450 56 to 470
(Ask Engineering Bulletin No807 in detail)
General
SMM 85 ,3,000 hours 85 3,000 hours +R Pin 160 to 450 47 to 3,300
Purpose
KMS Upgrade! 105 , Downsized 105 3,000 hours +R Pin 160 to 500 47 to 3,300
KMM 105 , 2,000/3,000 hours 105 2,000 to 3,000 hours +R Pin 160 to 450 39 to 3,300
SMH 85 , standard 85 2,000 hours +R Pin 6.3 to 100 820 to 100,000
(Ask Engineering Bulletin No585 for 160 to 450V)
Snap-in Type
KMH 105 , standard 105 2,000 hours +R Pin 6.3 to 100 560 to 82,000
(Ask Engineering Bulletin No584 for 160 to 450V)
Low SLM 15mm height, low profile 85 2,000 hours +R Pin 160 to 400 47 to 560
Profile KLM 15mm height, low profile 105 2,000 hours +R Pin 160 to 400 39 to 390
LXM Long life, downsized 105 7,000 hours +R Pin 160 to 450 47 to 2,200
LXS Long life, downsized 105 5,000 hours +R Pin 160 to 450 82 to 3,300
LXQ Long life, downsized 105 5,000 hours +R Pin 160 to 450 82 to 2,700
High LXG Long life 105 5,000 hours +R Pin 10 to 100 390 to 47,000
Reliability CHA Upgrade! No sparks with DC overvoltage, downsized 105 2,000 hours +R Pin 200 to 450 56 to 1,200
LXH No sparks with DC overvoltage 105 3,000/5,000 hours +R Pin 200 & 400 68 to 1,500
KMV NEW! For charge and discharge application 105 3,000 hours +R Pin 350 to 450 82 to 1,200
SME 85 , standard 85 2,000 hours +R Screw 10 to 100 2,200 to 680,000
General (Ask Engineering Bulletin No548 for 160 to 250V)
Purpose KMH 105 , standard 105 2,000 hours +R Screw 10 to 400 180 to 680,000
RWG Long life, high ripple, downsized 85 5,000 hours +R Screw 350 to 450 1,500 to 18,000
RWF Long life, high ripple 85 5,000 hours +R Screw 350 to 450 820 to 22,000
Screw-Mount Type
RWQ High ripple, downsized 85 2,000 hours +R Screw 350 to 550 390 to 15,000
RWE High ripple 85 2,000 hours +R Screw 350 to 550 100 to 12,000
RWY Long life, high ripple, low cost 85 5,000 hours +R Screw 350 to 450 500 to 14,000
For Inverter
RWL Long life, high ripple 85 20,000 hours +R Screw 350 to 450 2,200 to 12,000
FTP Ellips can shape, high ripple 85 5,000 hours +R Screw 63 to 450 270 to 21,000
LXA 105 , long life 105 2,000/5,000 hours +R Screw 10 to 525 330 to 390,000
LXR 105 , long life, high ripple 105 5,000 hours +R Screw 350 to 450 2,200 to 15,000
RWV NEW! For charge and discharge application 85 5,000 hours +R Screw 350 to 450 820 to 18,000
: Recommendation products : Some of range are solvent resistant.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(2/2) CAT. No. E1001L
ALUMINUM ELECTROLYTIC CAPACITORS
GROUP CHART
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS
SURFACE MOUNT RADIAL LEAD
Surface Mount High Temp. Radial Lead
Upgrade! 125 Upgrade!
PXA PXE PXF PS PSA PSC PSE PSF
Lower
ESR
Lower
ESR PXH Lower
ESR
Lower
ESR
5,000H 5,000H
NEW! NEW!
Longer Life
PXS PXK Digitalization
PSK
5,000H
5,000H
Super Low ESR
ALUMINUM ELECTROLYTIC CAPACITORS
SURFACE MOUNT
Surface Mount Standard 105 Low Impedance Digitalization
NEW!
MVA MVE MVY MZA MZJ
85 105 1,000H Lower Z 2,000H Lower Z 2,000H
NEW! NEW!
MZK MLA MZE MZF
5,000H Low Profile 3,000H Longer 7,000/8,000H Longer 10,000H
Life Life
Automotive
Application
High Temp. 105 Long Life
125 NEW!
Upgrade! NEW!
MVH MHB MHJ MVJ MVL MLE MLF
2,000H Longer 3,000/5,000H Longer 7,000/8,000H Longer 10,000H
Standard Low ESR Downsized Life Life Life
NEW!
MKB MLK
3,000H 5,000H Low Profile
RADIAL LEAD Low Profile
Power Supply
Low Profile (5mm) Low Profile (from 7mm) 105 Low Impedance Output Filter
NEW!
SRM SRG KRG LXY LXZ LZA
85 85 105 High Reliability Lower Z High Reliability Lower Z High Reliability
Downsized Downsized
NEW!
SRE KRE SRA KMA LXV KYA
85 105 85 105
Low Z Low Z
Downsized
Radial Lead Standard
KY KZE KZH KZM
Long Life, Low Z Low Z Low Z Long Life, Low Z
SMQ KMQ Adapter/
85 105 Ballast 105 High Ripple Current / Long Life
Downsized Flat Power Supply
Input Filter
SMG KMG PAG KXG KXJ
85 105 2,000H Downsized 8,000/10,000H 10,000/12,000H
High Temp. For Airbag Long Life No Sparks against For Photo Flash
125 135
Over-Voltage
NEW!
GXE GXL GXH LBG FL KLG PH
2,000 to 5,000H 5,000H 1,500/2,000H 105 5,000H 105 3,000H 105
Downsized
GPA Automotive
3,000/5,000H
Application KLJ
105
: Recommendation products
(1/2) CAT. No. E1001L
ALUMINUM ELECTROLYTIC CAPACITORS
GROUP CHART
ALUMINUM ELECTROLYTIC CAPACITORS
SNAP-IN
Long Life 105 Long Life
Snap-in Standard
SMM KMM LXG
85 105 5,000H
Downsized
Downsized
SMQ KMQ Upgrade!
85 105 KMS
105 LXQ LXM
5,000H 7,000H
SMH KMH
85 105 Super downsized Downsized
NEW!
KMR KMW LXS
105 105 5,000H
Low Profile (15mm) High Ripple Charge and discharge No Sparks against
Current application Over-Voltage
SLM KLM NEW! NEW! Upgrade!
85 105
KMT KMV LXH CHA
105 105 3,000/5,000H 2,000H
SCREW-MOUNT TERMINAL
85 High Ripple Current Ellipse Shape (85 )
RWG RWL FTP
5,000H 20,000H 5,000H
High Ripple
RWF RWY
5,000H 5,000H Low Cost
Screw-Mount Standard
SME KMH RWE RWQ
85 105
to 550V Downsized to 550V
For Inverter
105 Long Life (5,000hours)
) Charge and discharge
application
LXA LXR NEW!
10 to 525V High Ripple
RWV
5,000H
: Recommendation products
(2/2) CAT. No. E1001L
ALUMINUM ELECTROLYTIC CAPACITORS
PART NUMBERING SYSTEM
Part numbering system
Our part numbering system is common to all of Nippon Chemi-Con's subsidiaries worldwide, and has
been switching the conventional part numbering system. The part number uses 18-digit codes to express
information of principal product specifications such as product category, series name, rated voltage,
capacitance, case size and RoHS compliance.
Categories
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
S P T - 0 1 B R 0 5 K M 3 N 0 T 0 0
Code Details
A Conductive Polymer Aluminum Solid Capacitors (Polar)
E Aluminum Electrolytic Capacitors (Polar)
B Aluminum Electrolytic Capacitors (Bi-polar)
K Multilayer Ceramic Capacitors
F,W Film Capacitors
D Electric Double Layer Capacitors
T Metal Oxide Varistors
L Amorphous Choke Coils
* For digits 2 to 18, please see "Product code guide".
Example
Product type Part number (Example) Conventional part number (Ref.)
Surface mount type EMVE160ADA100MD55G MVE16VC10MD55E0
Radial lead type EKMQ6R3ETC102MHB5D TC04RKMQ6. 3VB1000MF50E0
Snap-in type EKMQ201VSN471MP30S KMQ200VSSN470M22BE0
Screw mount terminal type ERWE551LGC821MCD0M RWE550LGSN820MCC13EA
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/1) CAT. No. E1001L
ALUMINUM ELECTROLYTIC CAPACITORS
ENVIRONMENTAL CONSIDERATION
Environment friendly capacitors
Nippon Chemi-Con always considers the environment in product materials, designs and manufacturing. In fact,
our factories already have received ISO 14000 certificate. Cadmium, Mercury, Hexavalent Chromium, PBB and
PBDE have never been used in our products. Furthermore, lead-containing materials have been eliminated from
all our aluminum electrolytic capacitors including Conductive Polymer Aluminum Solid Capacitors to comply with
RoHS. If you need "Halogen-Free" products, please consult with us.
Lead free and Non-PVC Products
1. Lead wire (Plating)
Category Plating material on lead wires
case code : D46 to JA0 Sn-Bi
Chip
case code : KE0 to MN0 Sn
case dia : 8 Sn-Bi
Radial
case dia : 10 Sn
Snap-in Sn
Screw-Mount Originally lead-free
*Please consult with us when you need "Lead-free parts" other than the above mentioned terminal plating materials.
(Note) Sn : Tin, Bi : Bismuth
2. Sleeve
Category Sleeve material
Chip Sleeveless(Coating case)
8 5L Sleeveless(Coating case)
Radial
except 8 5L PET
Snap-in PET
Screw-Mount PVC(Lead-free)
* Please consult with us when you need "Non-PVC parts" other than the above mentioned outer sleeve materials.
The colors of a PET sleeve are "Black", "Brown", and "Dark blue".
Standard designs of "lead-free" Snap-in type are not equipped with a plastic disc.
Please consult with us when you need nonflammable grade for outer sleeve material.
Identification of friendly parts is given by a supplement code (18th digit) of the part number.
For details, please refer to "Product code guide" for each type.
Regarding compliance for EU REACH Regulation
1) According to the content of REACH handbook (Guidance on requirements for substances in articles which is published
on May 2008), our electronic components are "articles without any intended release". Therefore they are not applicable
for "Registration" for EU REACH Regulation Article 7 (1).
Reference: Electrolytic Condenser Investigation Society
"Study of REACH Regulation in EU about Electrolytic Capacitor" (publicized on 13 March 2008)
2) Nippon Chemi-Con develops the products without substance of very high concern(SVHC).DEHP(CASNo.117-81-7) was
contained as some covering material, Nippon Chemi-Con abolished use of DEHP totally at June, 2011.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/1) CAT. No. E1001L
ALUMINUM ELECTROLYTIC CAPACITORS
PACKAGING
TAPING SPECIFICATIONS
SURFACE MOUNT TYPE (TAPING)
CARRIER TAPE [mm]
1.75 0.1
Fig.1 Fig.3
1.75 0.1
4 0.1 1.5 +0
-
0.1
2 0.1 0.6max.
4 0.1 2 0.05 1.5 +0.1
-0
0.6max.
F
W
F
B
W
B
A
A P t
P Feed direction
t
Feed direction
Fig.2 Fig.4
0.1
1.75 0.1
2 0.1
1.5 +0.1
1.75
4 0.1 (If W=12, 2 0.05) 1.5 +0
-
0.1
4 0.1 -0 0.6max.
0.6max.
F
W
F
B
B
S
W
B
A
A t
P t Feeding hole
Feed direction P
Feed direction
0.2 0.05
05
0.
75
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
